Technical information:
- Drop forged , high tensile steel , SAE 1035 or SAE 1045.
- Hot dipped galvanized finish .
- Meets the performance requirements of ASTM F1145-92
( formerly US Fed Spec. FF-T-791b ) . - Temperature range -20 C up to +200 C .
- Minimum breaking load is 5 times the W.L.L .
- UNC Threads.
- All items available with Lock nuts.
- Up to 5/8 with saftey bolt and 3/4 above with cotter pins .
- Marked with CE, W.L.L , manufacturers ID , size, traceability code and L/R .
- Mill Test Certificate .
Description

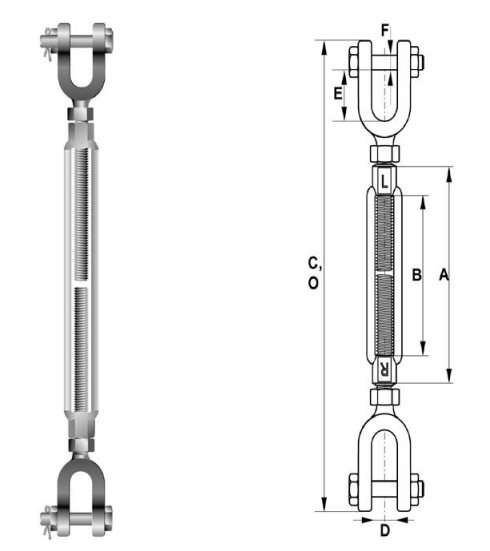

| Product code | SIZE(INCH) | Take Up(INCH) | WLL(t) | A(mm) | B(mm) | D(mm) | E(mm) | F(mm) | C(mm) | O(mm) | NET WEIGHT(kg) |
|
TBJJ6x4 |
1/4
|
4 |
0.23 |
120 |
102 |
11.5
|
15.75 |
7.5 |
200 |
302 |
0.16 |
|
TBJJ8x4.5 |
5/16 |
4 1/2 |
0.36 |
138 |
114 |
12.7
|
21.2 |
7.6 |
244 |
358 |
0.24 |
|
TBJJ10x6 |
3/8 |
6 |
0.54 |
180 |
152 |
13.7 |
21.5 |
9 |
290 |
442 |
0.71 |
|
TBJJ12x6 |
1/2 |
6 |
1 |
190 |
152 |
16
|
26.5 |
11 |
330 |
482 |
0.37 |
|
TBJJ12x9 |
1/2
|
9 |
1 |
267 |
229 |
16
|
26.5 |
11 |
406 |
635 |
0.79 |
|
TBJJ12x12 |
1/2 |
12 |
1 |
343 |
305 |
16
|
26.5 |
11 |
480 |
785 |
1.09 |
|
TBJJ16x6 |
5/8 |
6 |
1.59 |
203 |
152 |
21
|
33 |
14 |
378 |
530 |
1.35 |
|
TBJJ16x9 |
5/8 |
9 |
1.59 |
279 |
229 |
21 |
33 |
14 |
454 |
683 |
1.53 |
|
TBJJ16x12 |
5/8 |
12 |
1.59 |
355 |
305 |
21 |
33 |
14 |
530 |
835 |
1.79 |
|
TBJJ19x6 |
3/4 |
6 |
2.36 |
213 |
152 |
26 |
37.25 |
17.5 |
422 |
574 |
1.99 |
|
TBJJ19x9 |
3/4 |
9 |
2.36 |
289 |
229 |
26 |
37.25 |
17.5 |
498 |
727 |
2.48 |
|
TBJJ19x12 |
3/4 |
12 |
2.36 |
365 |
305 |
26 |
37.25 |
17.5 |
574 |
879 |
2.68 |
|
TBJJ19x18 |
3/4 |
18 |
2.36 |
517 |
451 |
26 |
37.25 |
17.5 |
726 |
1183 |
3.32 |
|
TBJJ22x6 |
7/8 |
6 |
3.27 |
222 |
152 |
31 |
42.75 |
20.5 |
466 |
466 |
3.15 |
|
TBJJ22x12 |
7/8 |
12 |
3.27 |
374 |
304 |
31 |
42.75 |
20.5 |
618 |
922 |
3.96 |
|
TBJJ22x18 |
7/8 |
18 |
3.27 |
527 |
457 |
31 |
42.75 |
20.5 |
770 |
1227 |
5.09 |
|
TBJJ25x6 |
1 |
6 |
4.54 |
233 |
152 |
33 |
52 |
24 |
510 |
662 |
4.44 |
|
TBJJ25x12 |
1 |
12 |
4.54 |
385 |
305 |
33 |
52 |
24 |
662 |
967 |
5.69 |
|
TBJJ25x18 |
1 |
18 |
4.54 |
537 |
457 |
33 |
52 |
24 |
814 |
1271 |
6.74 |
|
TBJJ25x24 |
1 |
24 |
4.54 |
690 |
610 |
33 |
52 |
24 |
966 |
1576 |
8.03 |
|
TBJJ32x6 |
1 1/4 |
6 |
6.89 |
236 |
152 |
47 |
70.5 |
31 |
598 |
598 |
8.56 |
|
TBJJ32x12 |
1 1/4 |
12 |
6.89 |
388 |
305 |
47 |
70.5 |
31 |
750 |
1055 |
10.27 |
|
TBJJ32x18 |
1 1/4 |
18 |
6.89 |
541 |
457 |
47 |
70.5 |
31 |
902 |
1359 |
11.99 |
|
TBJJ32x24 |
1 1/4 |
24 |
6.89 |
693 |
610 |
47 |
70.5 |
31 |
1054 |
1664 |
13.69 |
|
TBJJ38x12 |
1 1/2 |
12 |
9.71 |
403 |
305 |
57 |
70.5 |
37 |
800 |
1105 |
13.56 |
|
TBJJ38x18 |
1 1/2 |
18 |
9.71 |
555 |
457 |
57 |
70.5 |
37 |
952 |
1409 |
16.2 |
|
TBJJ38x24 |
1 1/2 |
24 |
9.71 |
708 |
610 |
57 |
70.5 |
37 |
1104 |
1714 |
18.88 |
|
TBJJ44x18 |
1 3/4 |
18 |
12.7 |
571 |
457 |
66 |
85 |
44 |
1046 |
1503 |
18.88 |
|
TBJJ44x24 |
1 3/4 |
24 |
12.7 |
724 |
610 |
66 |
85 |
44 |
1198 |
1808 |
28.06 |
|
TBJJ50x24 |
2 |
24 |
16.8 |
740 |
610 |
66.3 |
92 |
54 |
1340 |
1950 |
43.71 |
|
TBJJ63x24 |
2 1/2 |
24 |
27.2 |
795 |
610 |
78 |
110.8 |
60.5 |
1478 |
2088 |
81.8 |
|
TBJJ70x24 |
2 1/2 |
24 |
34 |
795 |
610 |
93.5 |
104.5 |
73 |
1562 |
2172 |
95.14 |
