Description
Technical Parameters

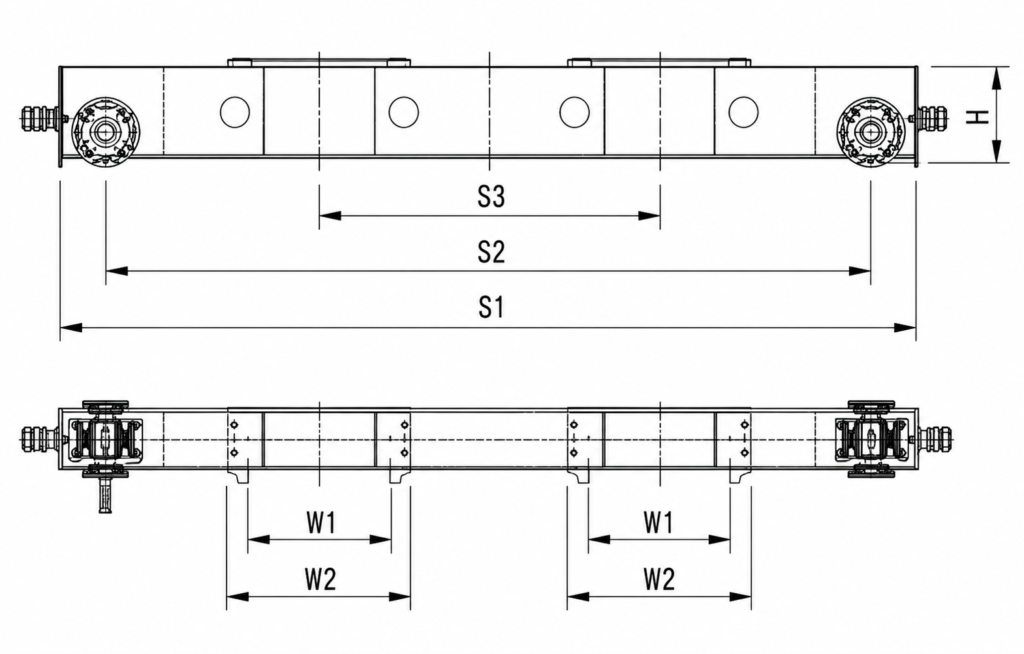

| Model | Application of crane model | Rectangular Steel tube | Wheel Size | Motor power | S1 (mm) | S2 (mm) | S3 (mm) | W1 (mm) | W2 (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| UD125-25 | 3.2t-11.5m | 150x200x8 | U125x60 | FA27-0.75kW-75 | 2500 | 2280 | 1200-1400 | 400 | 550 | 212.5 |
| UD125-30 | 3.2t-16.5m | 3000 | 2780 | 1200-1400 | 400 | 550 | 212.5 | |||
| UD125-35 | 3.2t-22.5m | 3500 | 3280 | 1200-1400 | 500 | 650 | 212.5 | |||
| UD125-40 | 3.2t-28.5m | 4000 | 3780 | 1200-1400 | 600 | 750 | 212.5 | |||
| UD160-25 | 6.3t-11.5m | 150x250x8 | U160x70 | FA37-1.1kW-59 | 2500 | 2200 | 1200-1400 | 400 | 550 | 270 |
| UD160-30 | 6.3t-16.5m | 3000 | 2700 | 1200-1400 | 400 | 550 | 270 | |||
| UD160-35 | 6.3t-22.5m | 3500 | 3200 | 1200-1400 | 500 | 650 | 270 | |||
| UD160-40 | 6.3t-28.5m | 4000 | 3700 | 1200-1400 | 600 | 750 | 270 | |||
| UD200-25 | 12.5t-11.5m | 200x300x10 | U200x70 | FA47-1.5kW-48 | 2500 | 2200 | 1400-1600 | 500 | 650 | 320 |
| UD200-30 | 12.5t-16.5m | 3000 | 2700 | 1400-1600 | 500 | 650 | 320 | |||
| UD200-35 | 12.5t-22.5m | 3500 | 3200 | 1400-1600 | 600 | 750 | 320 | |||
| UD200-40 | 12.5t-28.5m | 4000 | 3700 | 1400-1600 | 600 | 750 | 320 | |||
| UD250-35 | 16t-16.5m | 200x400x10 | U250x90 | FA57-2.2kW-39 | 3500 | 3100 | 1600-1800 | 600 | 750 | 425 |
| UD250-40 | 16t-22.5m | 4000 | 3600 | 1600-1800 | 600 | 750 | 425 | |||
| UD250-45 | 16t-28.5m | 4500 | 4100 | 1600-1800 | 700 | 850 | 425 | |||
| UD315-35 | 20t-16.5m | 200x400x10 | U315x90 | FA77-3kW-32 | 3500 | 3000 | 1800-2000 | 600 | 750 | 430 |
| UD315-40 | 20t-22.5m | 4000 | 3500 | 1800-2000 | 600 | 750 | 430 | |||
| UD315-45 | 20t-28.5m | 4500 | 4000 | 1800-2000 | 700 | 850 | 430 |
End carriage includes wheels, motors, rubber buffers, main beam connecting plates and bolts.
