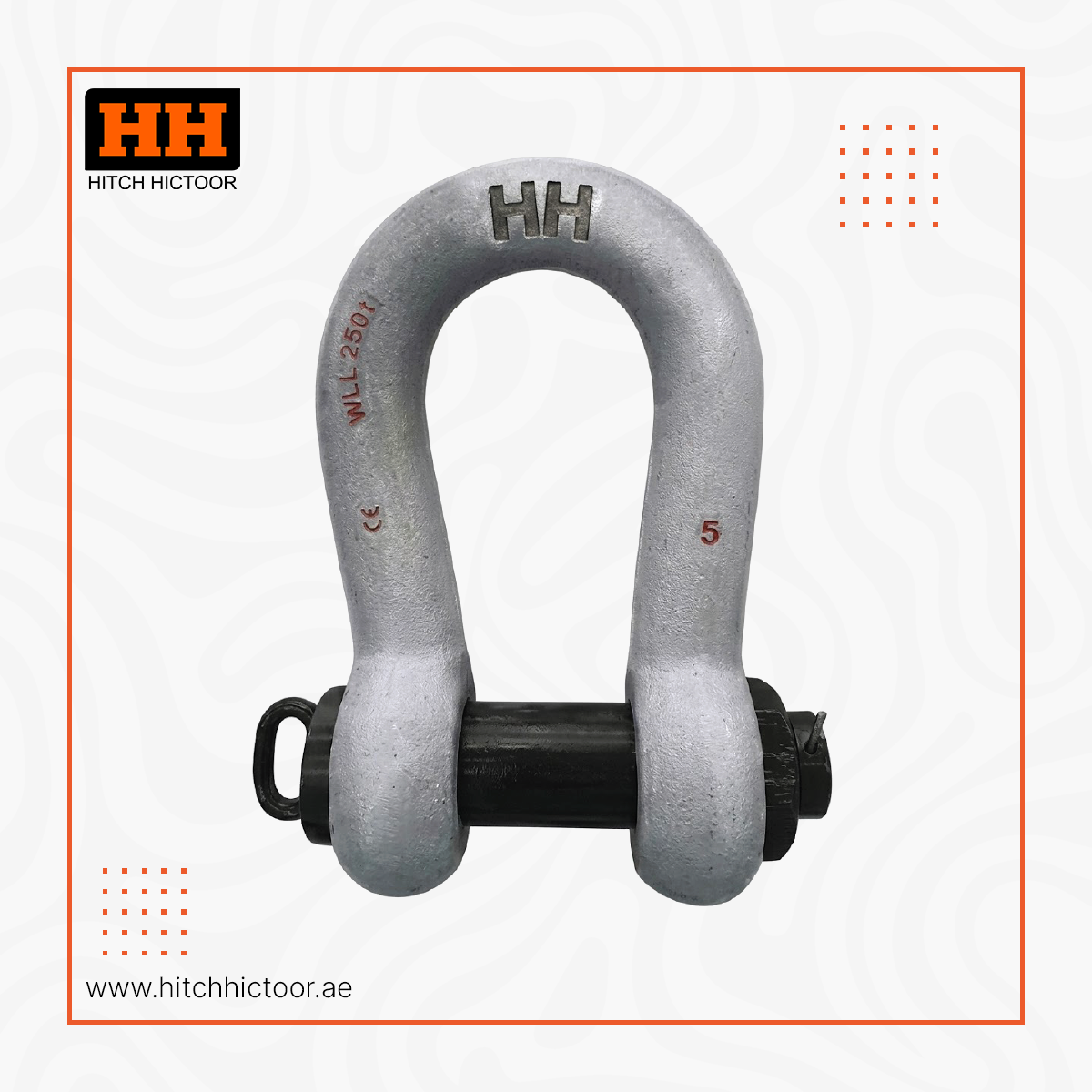

Heavy Duty Bow Shackle with Safety Bolt G 3140

Technical information:

  • Grade 8 high tensile steel body and pin , quenched and tempered .
  • Hot dipped galvanised finish with orange color pin .
  • Meets the W.L.L performance requirements of ASME B30.26
  • Temperature range 0 ºC up to +200 ºC
  • Minium breaking load is 5 times the W.L.L.
  • Marked with material grade , manufacturers ID , Product ID Mark
    and traceability Code .
  • Mill Test Certifacte .
Category:

Description

Model Working
Load Limit
(ton)		 Weight
Shackle
(kg)		 Diameter
pin
a(mm)		 Diameter
pin
b(mm)		 Diameter
eye
c(mm)		 Width
eye
d(mm)		 Width
inside
e(mm)		 Length
body
f(mm)		 Width
bow
g(mm)		 Length
h(mm)		 Length
bolt
i(mm)		 Width
j(mm)		 Thickness
nut
k(mm)		 Net
Weight
(kg)
HHG3140-0120 120 28.12 95 95 204 95 147 400 238 644 453 428 50 116
HHG3140-0150 150 39.15 105 108 235 105 169 410 275 686 496 485 50 161
HHG3140-0200 200 69.15 120 130 270 120 179 513 290 833 564 530 71 252
HHG3140-0250 250 85.5 130 140 284 130 205 554 305 896 614 565 71 317
HHG3140-0300 300 102 140 150 308 140 205 618 305 987 644 585 81 386
HHG3140-0400 400 126.66 170 175 376 164 231 669 325 1115 698 665 70 620
HHG3140-0500 500 147.51 180 185 398 164 256 719 350 1191 728 710 70 720
HHG3140-0600 600 204.43 200 205 444 189 282 719 375 1244 810 775 70 975
HHG3140-0700 700 241.66 210 215 454 204 308 718 400 1263 870 820 70 980
HHG3140-0800 800 253.47 210 220 464 204 308 718 400 1270 870 820 70 1100
HHG3140-0900 900 292.09 220 230 485 215 328 718 420 1296 920 860 70 1280
HHG3140-1000 1000 325.46 240 240 515 215 349 718 420 1336 940 900 70 1460
HHG3140-1250 1250 449.98 260 270 585 230 369 768 450 1456 1025 970 70 1990
HHG3140-1500 1500 519.27 280 290 625 230 369 818 450 1556 1025 1010 70 2400
