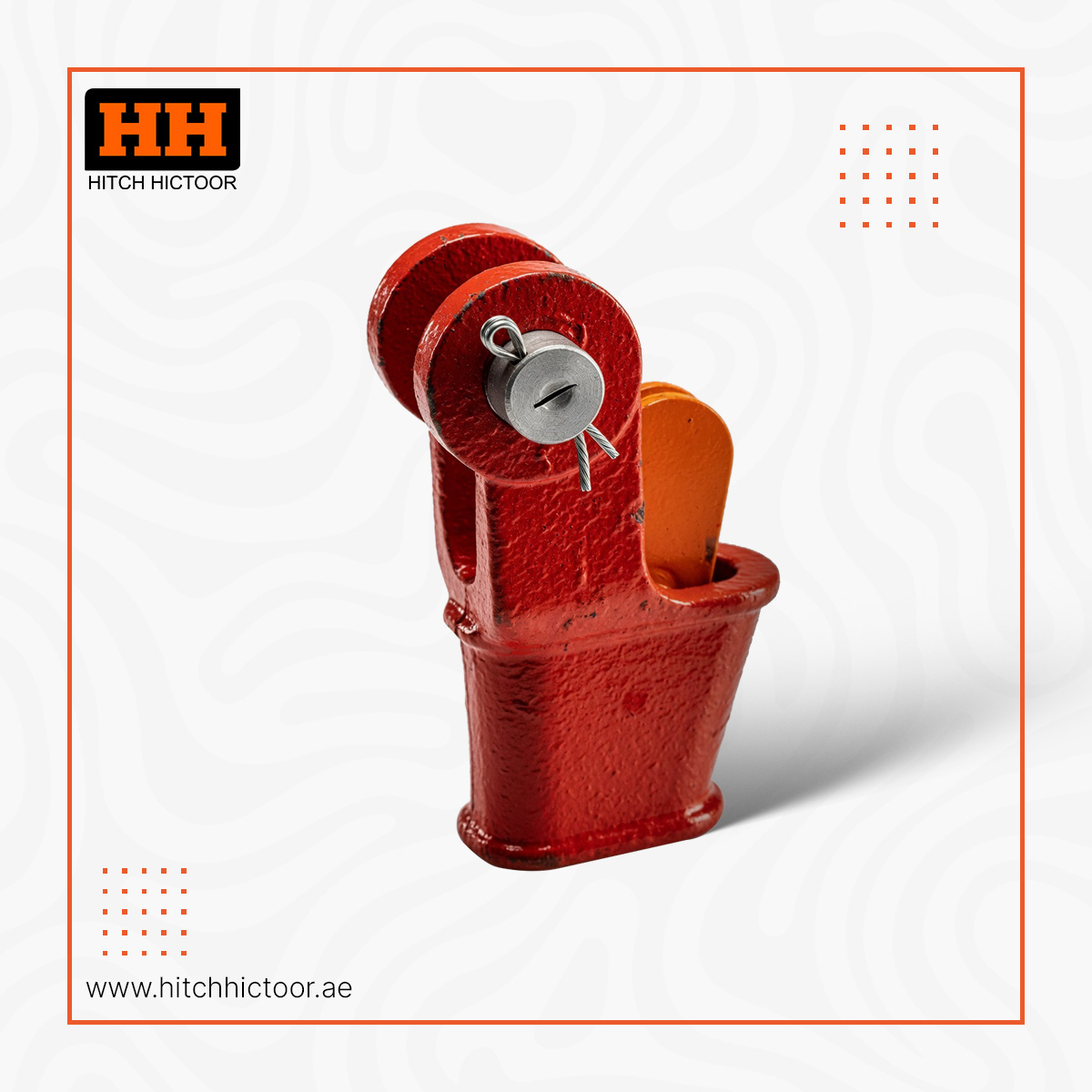

HH Wire rope Wedged socket HHWS

Technical information:

  • High tensile steel.
  • Orange painted Finish .
  • Sizes generally to BS EN 13411- 6 .
  • Temperature range -20 C to +200 C .
  • Marked with material grade , manufacturers ID , Product ID Mark and
    traceability Code .
  • Mill Test Certifacte .

Category:

Description

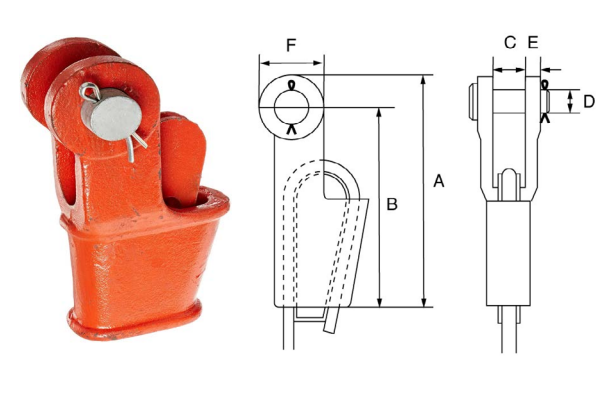

Product code WIRE ROPE DIA(mm) WIRE ROPE DIA(INCH) M.B.L(t) A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) NET WEIGHT(Kg)
HHWS78 7-8 5/16 8 129 110 18 16 9 36 0.8
HHWS910 9-10 3/8 12 165 142 21 20 11 46 1.7
HHWS1113 11-13 1/2 20 174 146 25 25 12 57 2.1
HHWS1416 14-16 5/8 25 211 176 31 30 15 70 4
HHWS1819 18-19 3/4 40 252 212 38 35 16 80 7
HHWS2022 20-22 7/8 55 288 240 44 41 19 95 10
HHWS2426 24-26 1 75 329 274 51 51 22 110 15
HHWS2729 27-29 1 1/8 90 375 310 57 57 25 130 21
HHWS3032 30-32 1 1/4 110 423 350 63 64 28 146 31
HHWS3436 34-36 1 3/8 125 474 400 69 64 28 148 37
HHWS3739 37-39 1 1/2 150 527 450 76 70 30 153 51
HHWS4042 40-42 1 5/8 170 580 500 76 76 33 160 64
