Characteristics:
- Manual mechanical design.
- Use stepped blocks to increase wedge opening up to 81 mm.

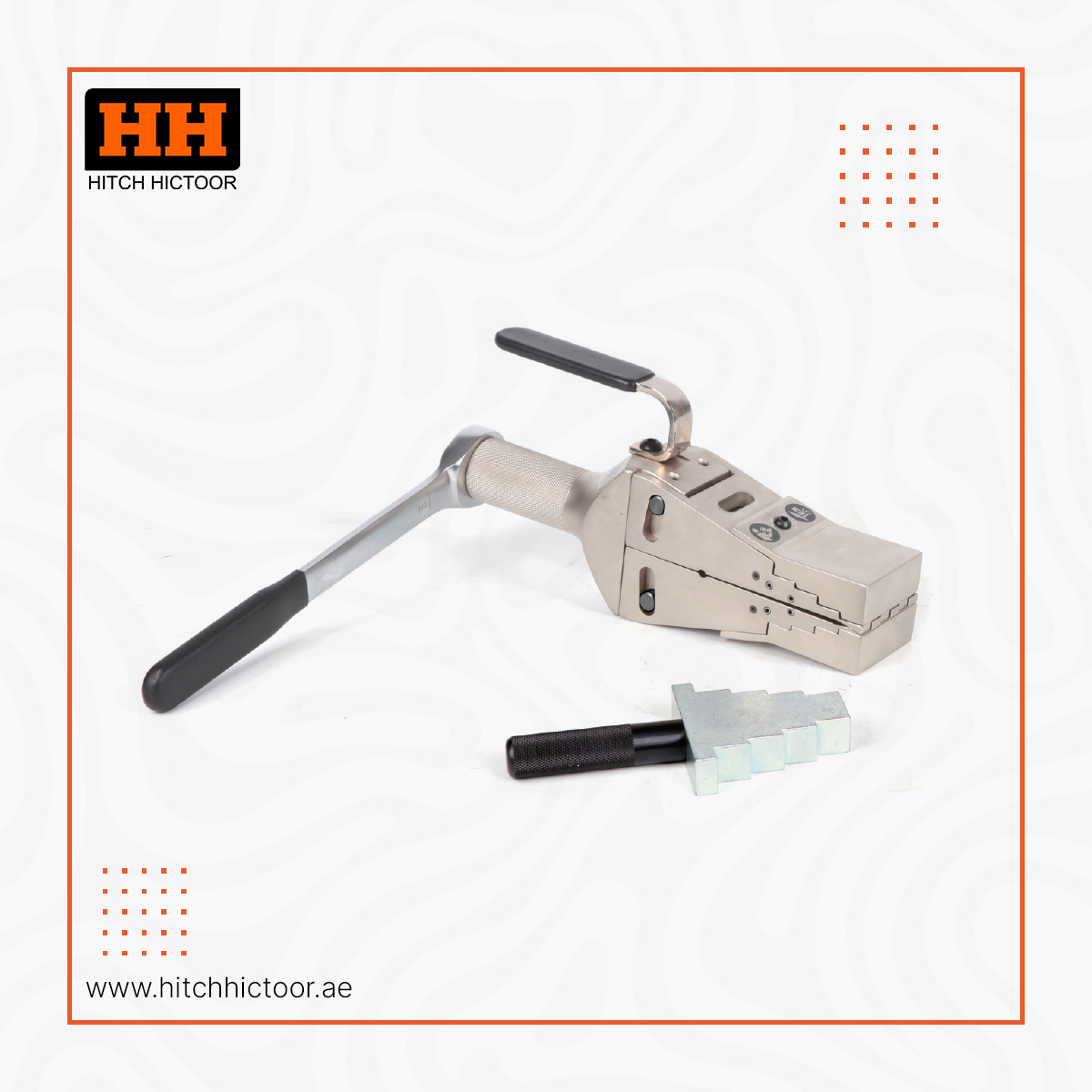

Component Diagram:
- Wedge spreader: The main tool body with integrated handle.
- stepped blocks: Integrated into the wedge tip for incremental expansion.
- safety block: Separate stepped block with handle for securing the gap.
Description
Technical Specifications:
| Model | Max. spreading force (Ton) | Tip clearance (mm) | Max. spread (mm) | Type | G.W. (Kg) | Packing size (cm) |
| HHP-10 | 11.1 | 6 | 81 | Hydraulic type | 11.5 | 53 × 17 × 11 |
| HHP-1481 | 12.7 | 6 | 81 | Hydraulic type | 10.2 | 31 × 16 × 12 |
| HHP-15F | 14.9 | 10 | 21 | Hydraulic type | 11 | 40 × 16 × 16 |
| HHP-8 | 7.2 | 6 | 81 | Mechanical type | 10.4 | 31 × 16 × 12 |
