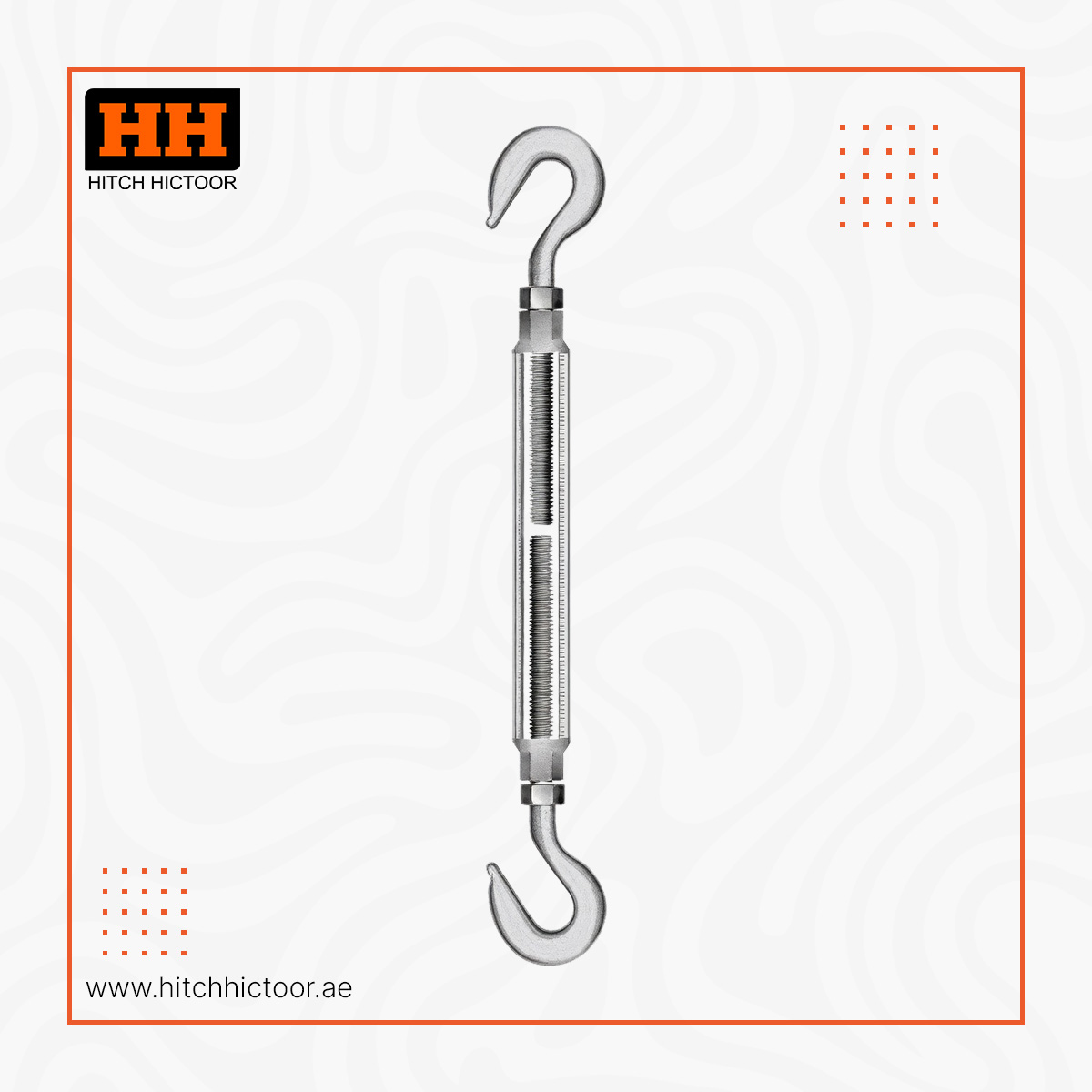

Technical information:
- Drop forged , high tensile steel , SAE 1035 or SAE 1045.
- Hot dipped galvanized finish .
- Meets the performance requirements of ASTM F1145-92
( formerly US Fed Spec. FF-T-791b ) . - Temperature range -20 C up to +200 C .
- Minimum breaking load is 5 times the W.L.L .
- UNC Threads.
- All items available with Lock nuts.
- Marked with CE, W.L.L , manufacturers ID , size, traceability code and L/R .
- Mill Test Certificate .

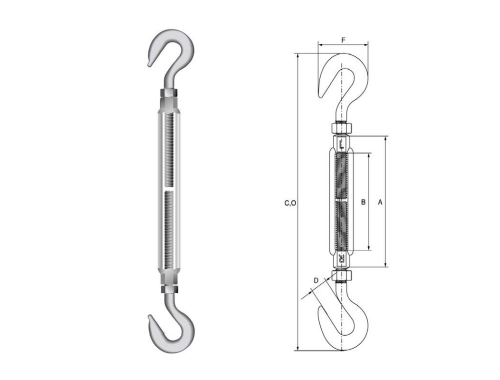

Description
|
Product code |
SIZE(INCH) |
Take Up(INCH) |
WLL(t) |
A(mm) |
B(mm) |
D(mm) |
F(mm) |
C(mm) |
O(mm) |
NET WEIGHT(kg) |
|
TBHH6x4 |
1/4
|
4 |
0.23 |
120 |
102 |
11.5
|
32 |
205 |
2296 |
0.15 |
|
TBHH8x4.5 |
5/16 |
4 1/2 |
0.36 |
138 |
114 |
13
|
38 |
241 |
345 |
0.24 |
|
TBHH10x6 |
3/8 |
6 |
0.54 |
180 |
152 |
14 |
45 |
301 |
443 |
0.37 |
|
TBHH12x6 |
1/2 |
6 |
1 |
190 |
152 |
17
|
58 |
364 |
516 |
0.79 |
|
TBHH12x9
|
1/2
|
9 |
1 |
267 |
229 |
17
|
58 |
442 |
668 |
0.94 |
|
TBHH12x12 |
1/2 |
12 |
1 |
343 |
305 |
17
|
58 |
516 |
821 |
1.09 |
|
TBHH16x6 |
5/8 |
6 |
1.59 |
203 |
152 |
21
|
71 |
388 |
540 |
1.35 |
|
TBHH16x9 |
5/8 |
9 |
1.59 |
279 |
229 |
21 |
71 |
464 |
693 |
1.59 |
|
TBHH16x12 |
5/8 |
12 |
1.59 |
355 |
305 |
21 |
71 |
540 |
845 |
1.84 |
|
TBHH16x18 |
5/8 |
18 |
1.59 |
507 |
456 |
21 |
71 |
692 |
1144 |
2.33 |
|
TBHH19x6 |
3/4 |
6 |
2.36 |
213 |
152 |
25 |
84.5 |
440 |
592 |
2.12 |
|
TBHH19x9 |
3/4 |
9 |
2.36 |
289 |
229 |
25 |
84.5 |
516 |
745 |
2.47 |
|
TBHH19x12 |
3/4 |
12 |
2.36 |
365 |
305 |
25 |
84.5 |
590 |
895 |
2.82 |
|
TBHH19x18 |
3/4 |
18 |
2.36 |
517 |
457 |
25 |
84.5 |
744 |
1201 |
3.52 |
|
TBHH22x12 |
7/8 |
12 |
3.27 |
374 |
304 |
28 |
96 |
636 |
940 |
4.18 |
|
TBHH22x18 |
7/8 |
18 |
3.27 |
527 |
457 |
28 |
96 |
788 |
1245 |
5.15 |
|
TBHH25x6 |
1 |
6 |
4.54 |
233 |
152 |
31 |
108 |
524 |
676 |
4.4 |
|
TBHH25x12 |
1 |
12 |
4.54 |
385 |
305 |
31 |
108 |
678 |
983 |
5.66 |
|
TBHH25x18 |
1 |
18 |
4.54 |
537 |
457 |
31 |
108 |
830 |
1287 |
6.92 |
|
TBHH25x24 |
1 |
24 |
4.54 |
690 |
610 |
31 |
108 |
982 |
1592 |
8.17 |
|
TBHH32x12 |
1 1/4 |
12 |
6.89 |
388 |
305 |
38 |
130 |
750 |
1055 |
9.71 |
|
TBHH32x18 |
1 1/4 |
18 |
6.89 |
541 |
457 |
38 |
130 |
904 |
1361 |
11.55 |
|
TBHH32x24 |
1 1/4 |
24 |
6.89 |
693 |
610 |
38 |
130 |
1056 |
1666 |
13.4 |
|
TBHH38x12 |
1 1/2 |
12 |
9.71 |
403 |
457 |
48 |
146 |
824 |
1129 |
13.49 |
|
TBHH38x18 |
1 1/2 |
18 |
9.71 |
555 |
305 |
48 |
146 |
976 |
1433 |
16 |
|
TBHH38x24 |
1 1/2 |
24 |
9.71 |
708 |
610 |
48 |
146 |
1128 |
1738 |
18.51 |
