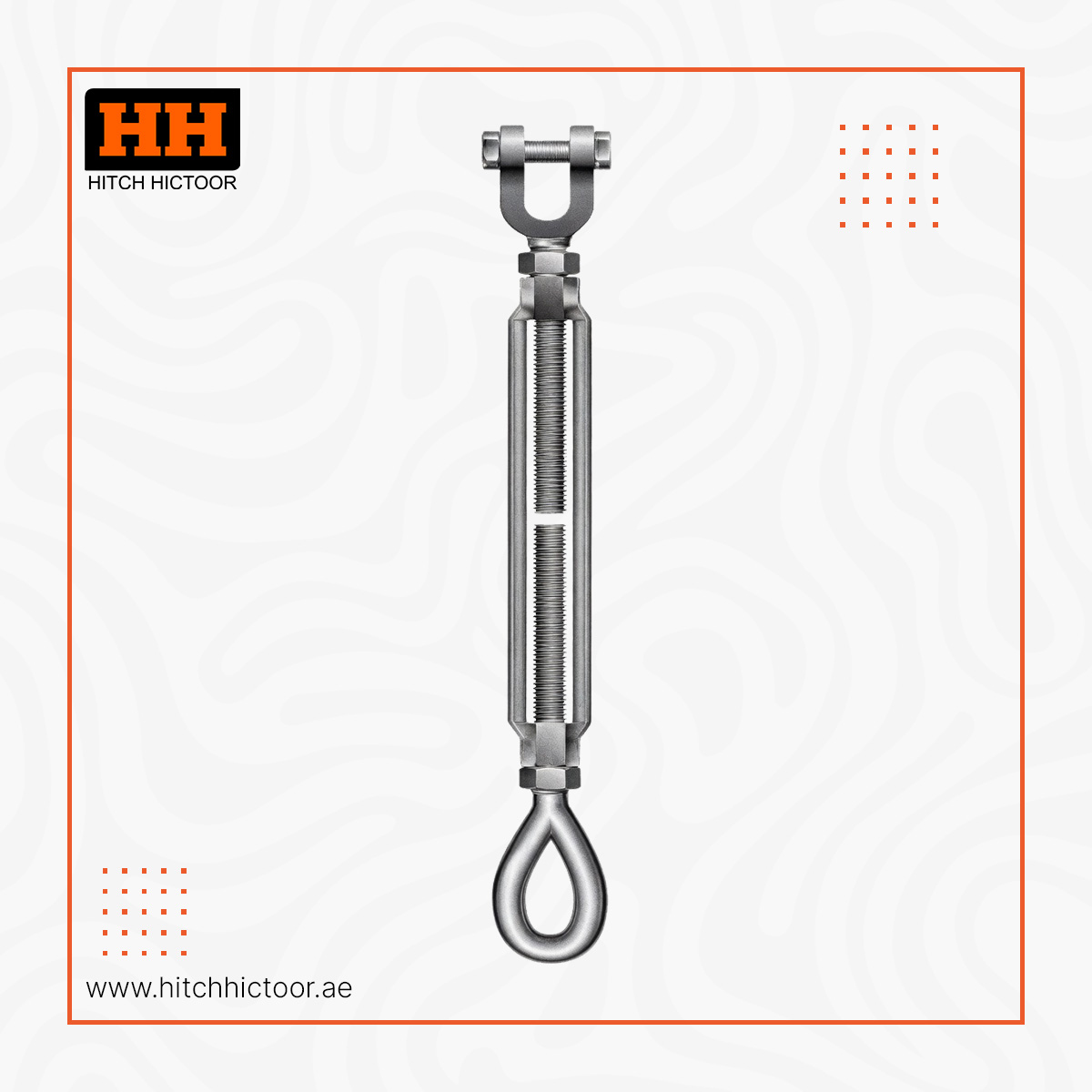

Technical information:
- Drop forged , high tensile steel , SAE 1035 or SAE 1045.
- Hot dipped galvanized finish .
- Meets the performance requirements of ASTM F1145-92
( formerly US Fed Spec. FF-T-791b ) . - Temperature range -20 C up to +200 C .
- Minimum breaking load is 5 times the W.L.L .
- UNC Threads.
- All items available with Lock nuts.
- Up to 5/8 with saftey bolt and 3/4 above with cotter pins .
- Marked with CE, W.L.L , manufacturers ID , size, traceability code and L/R .
- Mill Test Certificate .

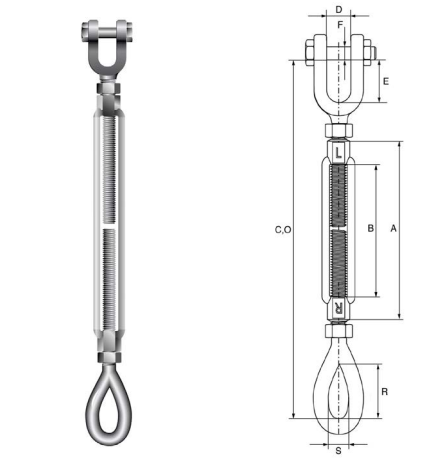

Description
|
Product code |
SIZE(INCH) |
Take Up(INCH) |
WLL(t) |
A(mm) |
B(mm) |
D(mm) |
E(mm) |
F(mm) |
R(mm) |
S(mm) |
C(mm) |
O(mm) |
NET WEIGHT(kg) |
|
TBJE6x4 |
1/4
|
4 |
0.23 |
120 |
102 |
11.5
|
15.75 |
7.5 |
20 |
8.5 |
215 |
307 |
0.14 |
|
TBJE8x4.5 |
5/16 |
4 1/2 |
0.36 |
138 |
114 |
12.7
|
21.2 |
7.6 |
24 |
11.2 |
249 |
354 |
0.2 |
|
TBJE10x6 |
3/8 |
6 |
0.54 |
180 |
152 |
13.7 2 |
21.5 |
9 |
28.5 |
13.5 |
308 |
460 |
0.34 |
|
TBJE12x6 |
1/2 |
6 |
1 |
190 |
152 |
16
|
26.5 |
11 |
36.5 |
18 |
380 |
532 |
0.71 |
|
TBJE12x9
|
1/2
|
9 |
1 |
267 |
229 |
16
|
26.5 |
11 |
36.5 |
18 |
456 |
685 |
0.85 |
|
TBJE12x12 |
1/2 |
12 |
1 |
343 |
305 |
16
|
26.5 |
11 |
36.5 |
18 |
510 |
815 |
1 |
|
TBJE16x6 |
5/8 |
6 |
1.59 |
203 |
152 |
21
|
33 |
14 |
45 |
22.5 |
398 |
550 |
1.17 |
|
TBJE16x9 |
5/8 |
9 |
1.59 |
279 |
229 |
21 |
33 |
14 |
45 |
22.5 |
474 |
703 |
1.42 |
|
TBJE16x12 |
5/8 |
12 |
1.59 |
355 |
305 |
21 |
33 |
14 |
45 |
22.5 |
550 |
855 |
1.67 |
|
TBJE19x6 |
3/4 |
6 |
2.36 |
213 |
152 |
26 |
37.25 |
17.5 |
53 |
25.4 |
448 |
600 |
1.87 |
|
TBJE19x9 |
3/4 |
9 |
2.36 |
289 |
229 |
26 |
37.25 |
17.5 |
53 |
25.4 |
524 |
753 |
2.22 |
|
TBJE19x12 |
3/4 |
12 |
2.36 |
365 |
305 |
26 |
37.25 |
17.5 |
53 |
25.4 |
600 |
905 |
2.57 |
|
TBJE19x18 |
3/4 |
18 |
2.36 |
517 |
457 |
26 |
37.25 |
17.5 |
53 |
25.4 |
752 |
1209 |
3.77 |
|
TBJE22x12 |
7/8 |
12 |
3.27 |
374 |
304 |
31 |
42.75 |
20.5 |
60 |
332 |
630 |
934 |
3.77 |
|
TBJE22x18 |
7/8 |
18 |
3.27 |
527 |
457 |
31 |
42.75 |
20.5 |
60 |
32 |
782 |
1239 |
4.7 |
|
TBJE25x6 |
1 |
6 |
4.54 |
233 |
152 |
33 |
52 |
24 |
76 |
37 |
552 |
704 |
4.1 |
|
TBJE25x12 |
1 |
12 |
4.54 |
385 |
305 |
33 |
52 |
24 |
76 |
37 |
704 |
1009 |
5.33 |
|
TBJE25x18 |
1 |
18 |
4.54 |
537 |
457 |
33 |
52 |
24 |
76 |
37 |
858 |
1313 |
6.56 |
|
TBJE25x24 |
1 |
24 |
4.54 |
690 |
610 |
33 |
52 |
24 |
76 |
37 |
1010 |
1620 |
7.83 |
|
TBJE32x12 |
1 1/4 |
12 |
6.89 |
388 |
305 |
47 |
70.5 |
31 |
90 |
46 |
776 |
1081 |
9.1 |
|
TBJE32x18 |
1 1/4 |
18 |
6.89 |
541 |
457 |
47 |
70.5 |
31 |
90 |
46 |
928 |
1385 |
10.94 |
|
TBJE32x24 |
1 1/4 |
24 |
6.89 |
693 |
610 |
47 |
70.5 |
31 |
90 |
46 |
1080 |
1690 |
12.75 |
|
TBJE38x12 |
1 1/2 |
12 |
9.71 |
403 |
305 |
47 |
70.5 |
31 |
103 |
53.8 |
838 |
1143 |
12.93 |
|
TBJE38x18 |
1 1/2 |
18 |
9.71 |
555 |
457 |
57 |
70.5 |
37 |
103 |
53.8 |
990 |
1447 |
15.43 |
|
TBJE38x24 |
1 1/2 |
24 |
9.71 |
708 |
610 |
57 |
70.5 |
37 |
103 |
53.8 |
1144 |
1754 |
17.97 |
|
TBJE44x18 |
1 3/4 |
18 |
12.7 |
571 |
457 |
66 |
85 |
44 |
117 |
60.5 |
1076 |
1544 |
23.37 |
|
TBJE44x24 |
1 3/4 |
24 |
12.7 |
724 |
610 |
66 |
85 |
44 |
117 |
60.5 |
1230 |
1840 |
26.91 |
|
TBJE50x24 |
2 |
24 |
16.8 |
740 |
610 |
66.3 |
92 |
54 |
146 |
68 |
1400 |
2010 |
39.93 |
|
TBJE63x24 |
2 1/2 |
24 |
27.2 |
795 |
610 |
78 |
110.8 |
60.5 |
165 |
79 |
1490 |
2100 |
70.96 |
|
TBJE70x24 |
2 3/4 |
24 |
34 |
795 |
610 |
93.5 |
104.5 |
73 |
178 |
82.5 1 |
1562 |
2172 |
82.22 |
