Characteristics:
- Lightweight, robust, durable and compact.
- Two-speed hydraulic system for fast and easy operation.
- Reduced handle effort and ergonomic grip for less operator fatigue.
- Handle lock and lightweight construction for easy carrying.
- Large and comfortable release knob for improved control of pressure release.
- Internal pressure relief valve for overload protection.
- Large oil capacities to power a wide range of cylinders or tools.
Description

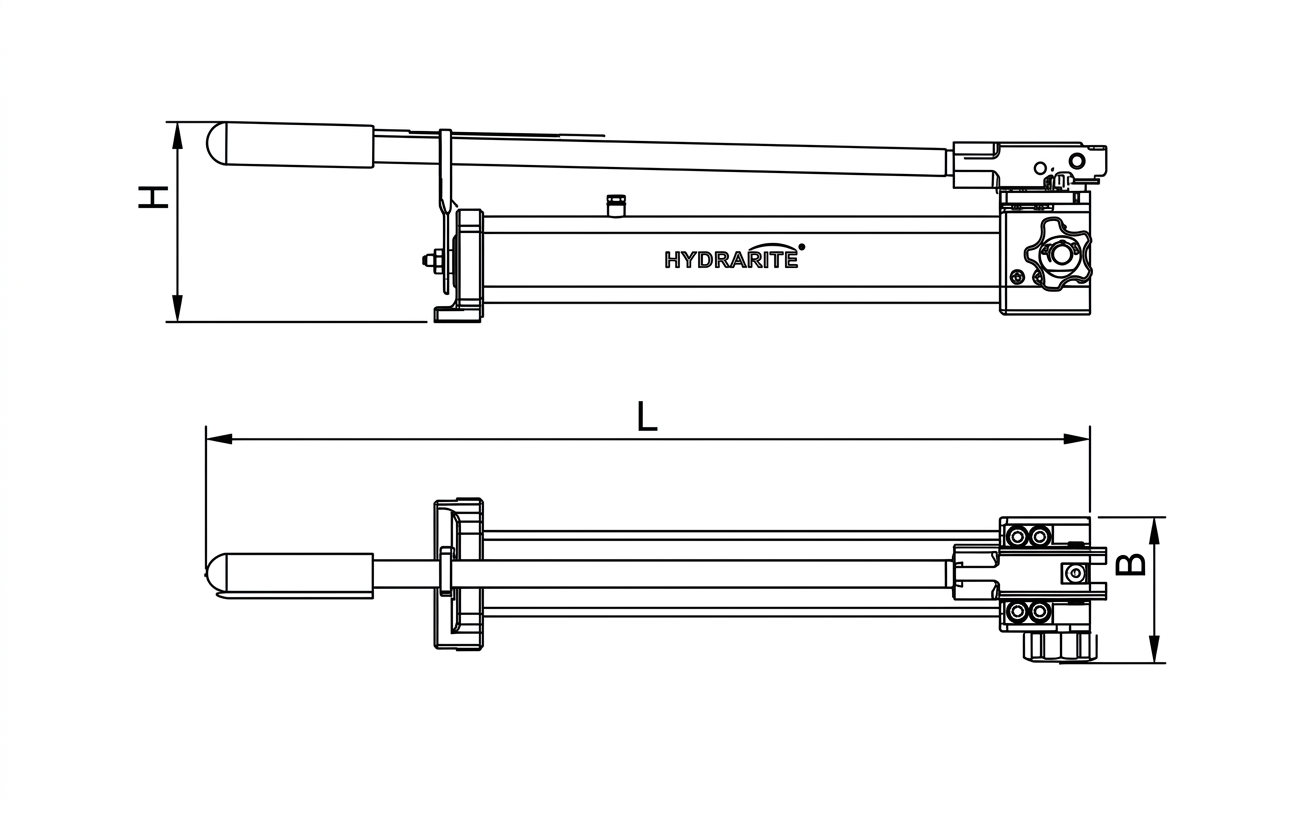

| Model | Working pressure (bar) | Oil displacement per stroke (cm³) | Reservoir (cm³) | Dimensions (mm) | Packing size (cm) | Weight (Kg) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Low pressure stage | High pressure stage | Low pressure stage | High pressure stage | Oil capacity | Usable oil capacity | L | B | H | |||

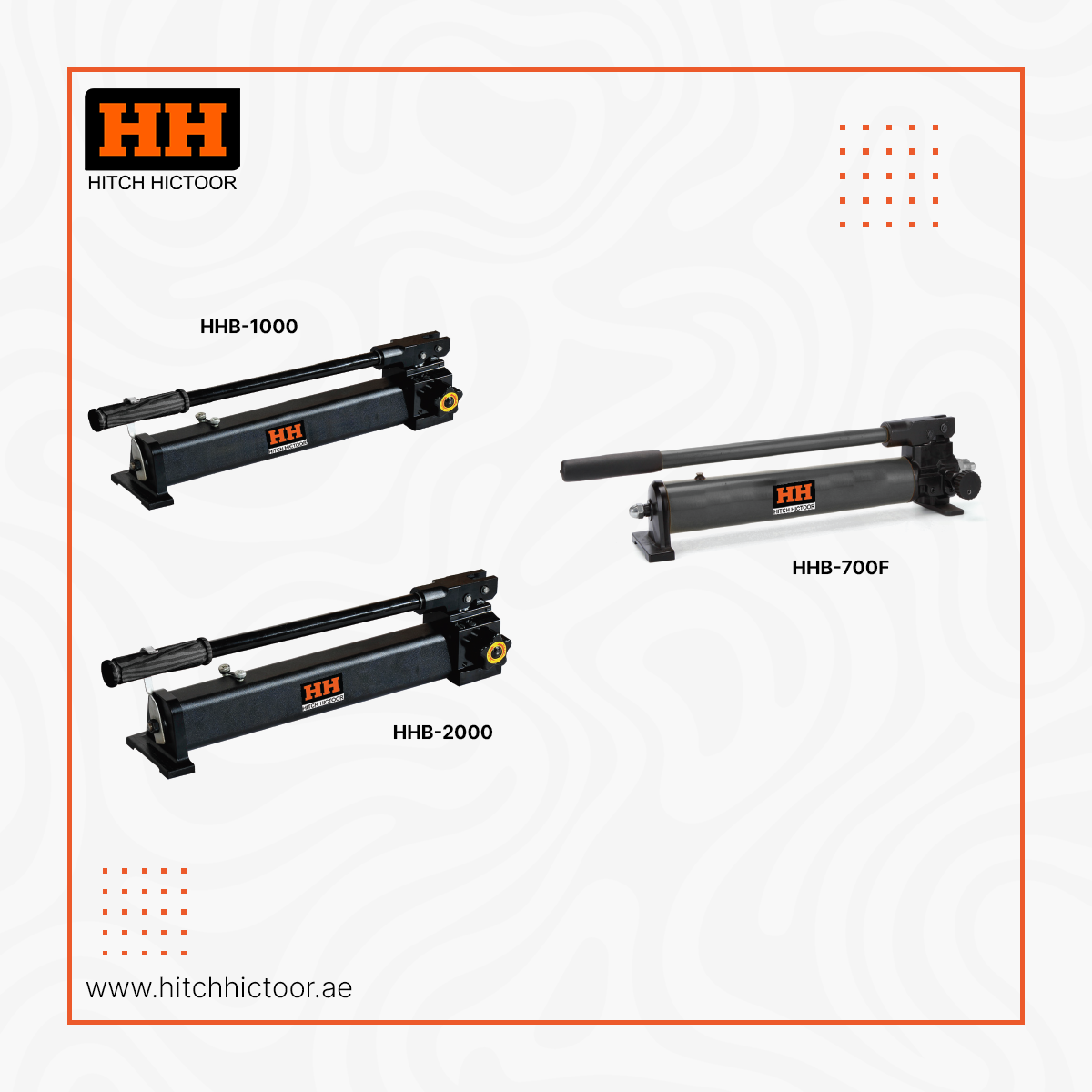

| HHB-1000 | 20 | 700 | 13 | 2.3 | 1300 | 1000 | 550 | 110 | 125 | 73 × 19 × 19 | 6.4 |
| HHB-2000 | 20 | 700 | 13 | 2.3 | 2500 | 2000 | 550 | 130 | 140 | 73 × 19 × 19 | 8.9 |
| HHB-700F | 20 | 700 | 13 | 2.3 | 980 | 930 | 620 | 115 | 120 | 73 × 19 × 19 | 6 |
