- Working pressure 700 bar

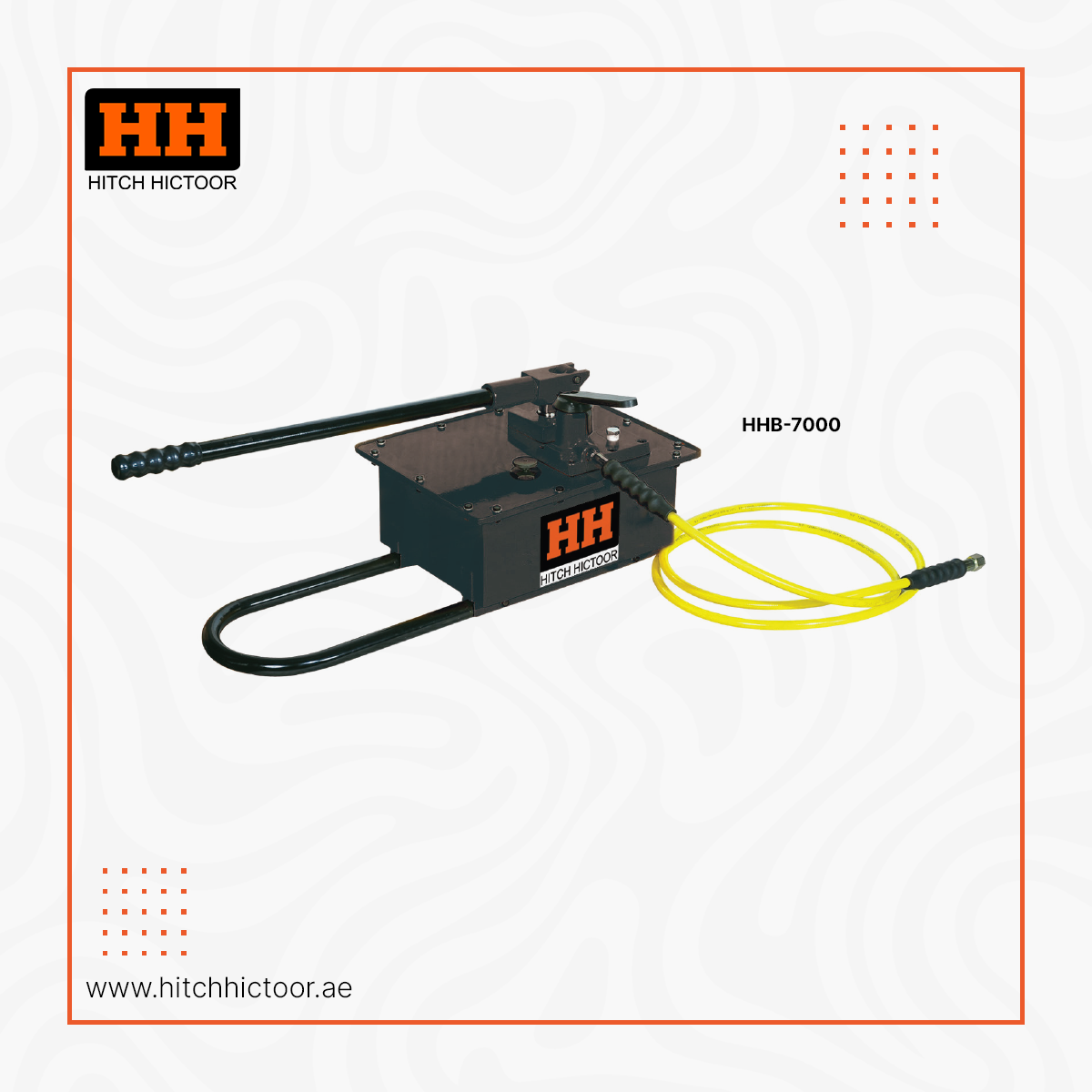

- HHB-7000 is one-way pump for single-acting applications.
- HHB-7000S is two-way pump for double-acting applications.
- Supplied with high pressure hose 1.8 meters and NPT 3/8” quick coupler with dust cap.
Characteristics:
- HHB-7000 and HHB-7000S feature extra large reservoirs and high first-stage flow rate. These pumps are ideally suited for powering high-capacity cylinders.
- Two-speed hydraulic system for fast and easy operation.
- Large release valve handle for controlling load descent.
Description
HHB-7000 Series Pump Specifications
| Model | Pump type | Working pressure (bar) | Oil displacement per stroke (cm³) | Reservoir (cm³) | Dimensions (mm) | Packing size (cm) | Weight (Kg) |
| Low pressure stage | High pressure stage | Low pressure stage | High pressure stage | Oil capacity | Usable oil capacity | ||
| HHB-7000 | one-way | 20 | 700 | 126.2 | 4.75 | 7500 | 7000 |
| HHB-7000S | two-way | 20 | 700 | 126.2 | 4.75 | 7500 | 7000 |
| Model | Working pressure (bar) | Oil displacement per stroke (cm³) | Reservoir (cm³) | Dimensions (mm) | Packing size (cm) | Weight (Kg) |
| Low pressure stage | High pressure stage | Low pressure stage | High pressure stage | Oil capacity | Usable oil capacity | |
| HHB-700 | 20 | 700 | 13 | 1.6 | 970 | 950 |
| HHB-700A | 20 | 700 | 13 | 2.3 | 2750 | 2100 |
| HHB-700B | 20 | 700 | 13 | 2.3 | 970 | 900 |
| HHB-700C | 20 | 700 | 8 | 1 | 400 | 350 |
