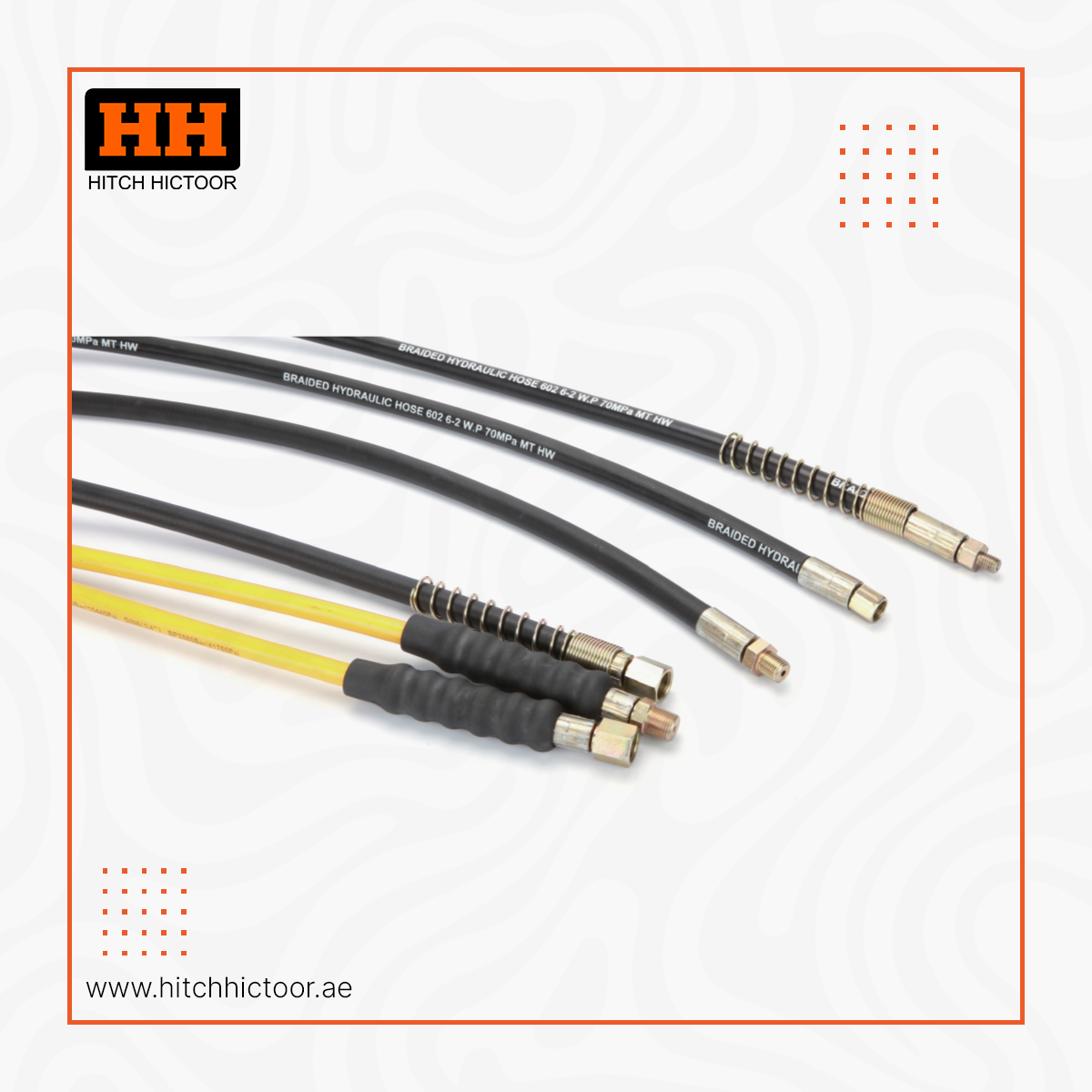

Hoses

• Max working pressure 700 bar, featuring a 4:1 safety factor
• Do not exceed 700 bar maximum pressure
• Do not handle hoses which are under pressure.

Hose Oil Capacity

When using greater hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following:

For 6.35mm inside diameter hoses:

Capacity(cm^3) = 32.1699 \times Length(m)
