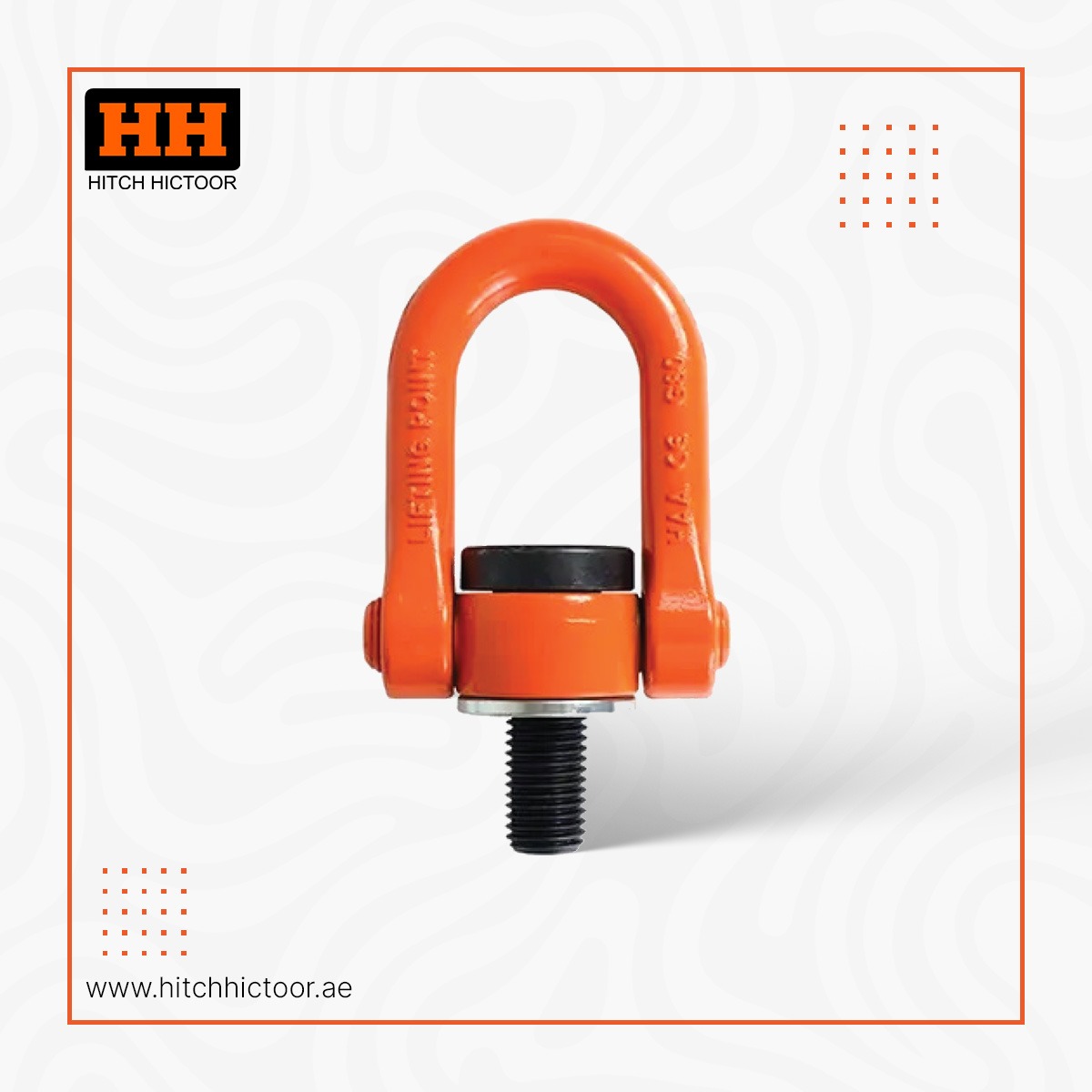

HH YDS M8-M100 Metric Thread Double Swivel

Category:

Description

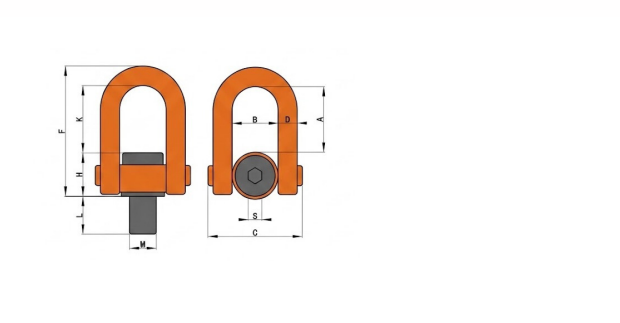

TECHNICAL SPECIFICATION

Item No. WLL/T Thread M L A±3 B±3 C D F K±3 H S Tightening Torque/Nm Weight/kg
YDS-M8 0.5 M8×1.25 12 50.5 37 76 14 101.5 49.5 38 8 10-40 0.8
YDS-M10 0.7 M10×1.5 16 50.5 37 76 14 101.5 49.5 38 8 10-40 0.8
YDS-M12 1 M12×1.75 18 50.5 37 76 14 101.5 49.5 38 8 15-40 0.8
YDS-M14 1.5 M14×2.0 21 50.5 37 76 14 101.5 49.5 38 8 30-100 0.8
YDS-M16 2 M16×2.0 24 50.5 37 76 14 101.5 49.5 38 8 45-130 0.8
YDS-M18 2.5 M18×2.5 40 74.5 54 105 20 145 77 48 12 100-170 1.9
YDS-M20 3 M20×2.5 40 74.5 54 105 20 145 77 48 12 100-170 2
YDS-M22 3 M22×2.5 40 74.5 54 105 20 145 77 48 12 100-170 2.1
YDS-M24 4.5 M24×3.0 40 74.5 54 105 20 145 77 48 12 190-280 2.5
YDS-M27 5 M27×3.0 40 98.5 73 146 30 201.5 103.5 68 17 250-500 5.5
YDS-M30 7.3 M30×3.5 45 98.5 73 146 30 201.5 103.5 68 17 270-600 5.5
YDS-M33 8 M33×3.5 50 98.5 73 146 30 201.5 103.5 68 17 270-600 5.5
YDS-M36 10 M36×4.0 54 98.5 73 146 30 201.5 103.5 68 17 270-600 5.5
YDS-M39 10 M39×4.0 58 98.5 73 146 30 201.5 103.5 68 17 350-800 6
YDS-M42 12.5 M42×4.5 63 98.5 73 146 30 201.5 103.5 68 17 350-800 6
YDS-M45 15 M45×4.5 63 98.5 73 146 30 201.5 103.5 68 17 350-800 6
YDS-M48S 16 M48×5.0 63 98.5 73 146 30 201.5 101.5 70 17 350-800 6.5
YDS-M48B 20 M48×5.0 68 120 93 182 36 249 125 84 19 350-800 11.5
YDS-M52 20 M52×5.0 68 120 93 182 36 249 125 84 19 350-900 12
YDS-M56 25 M56×5.5 78 120 93 182 36 249 125 84 19 350-900 12
YDS-M60 25 M60×5.5 90 120 93 182 36 253 125 88 19 350-600 13
YDS-M64S 32 M64×6.0 90 120 93 182 36 253 125 88 19 500-1000 13
YDS-M64B 33 M64×6.0 100 185 144 280 58 395 195 136 36 500-1000 42
YDS-M72×4 35 M72×4.0 110 185 144 280 58 395 195 136 36 500-1200 43
YDS-M72×6 35 M72×6.0 110 185 144 280 58 395 195 136 36 500-1200 43
YDS-M80 40 M80×6.0 120 185 144 280 58 395 195 136 36 500-1200 44.5
YDS-M90 45 M90×6.0 135 185 144 280 58 395 195 136 36 500-1500 46.5
YDS-M100 50 M100×6.0 150 185 144 280 58 395 195 136 36 500-1700 49
