Technical information: Technical information:
- High-strength alloy steel body for long service life
- Safety clutch hand wheel to prevent accidental load release
- Sealed gear and brake system for dust and moisture protection
- Precision-machined internal gears offering low pull force
- Ergonomic lever design with anti-slip grip
- Double pawl brake mechanism for reliable load holding
- 360° rotating forged hook with safety latch
- Compact size with low headroom ideal for tight spaces
- Tested to 150% of rated capacity for safety assurance
- Mill Test Certificate Available.
Description

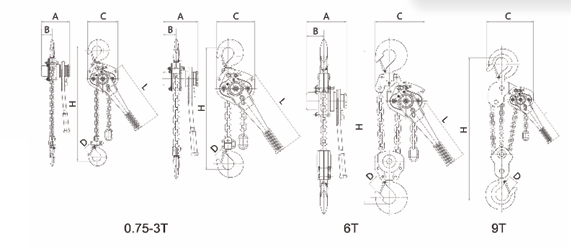

| Product Code (1.5m) | Capacity (Kgs) | A (mm) | B (mm) | C (mm) | D (mm) | H (mm) | L (mm) | Load Chain (mm) | Falls of Chains |
|---|---|---|---|---|---|---|---|---|---|
| HDLH62000750 | 750 | 150 | 55 | 128 | 32 | 303 | 254 | 6.3 | 1 |
| HDLH62001500 | 1500 | 165 | 64 | 149 | 36 | 365 | 366 | 7.1 | 1 |
| HDLH62003000 | 3000 | 195 | 85 | 182 | 46 | 485 | 366 | 9 | 1 |
| HDLH62006000 | 6000 | 195 | 85 | 240 | 46 | 600 | 366 | 9 | 2 |
| HDLH62009000 | 9000 | 195 | 85 | 335 | 57 | 700 | 366 | 9 | 3 |
| Capacity (Kgs) | Running Test Load (KN) | Effort Required to Lift Rated Load (N) | Net Weight (kg) with 1.5m Load Chain (Kgs) |
|---|---|---|---|
| 750 | 1.125 | 230 | 6.6 |
| 1500 | 2.25 | 295 | 11 |
| 3000 | 4.5 | 414 | 17 |
| 6000 | 9 | 430 | 27.5 |
| 9000 | 13.5 | 430 | 47 |
Reviews

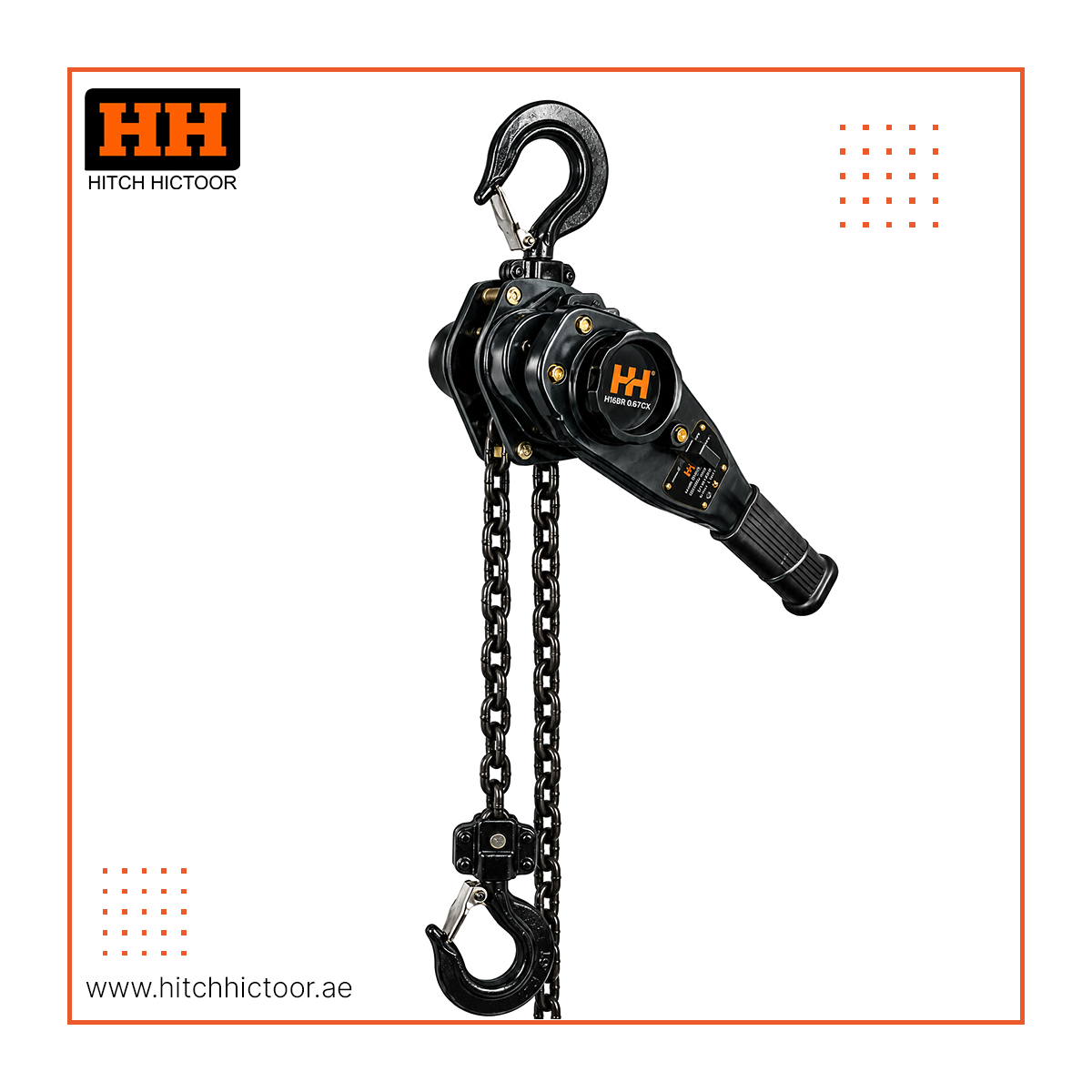

Be the first to review “HEAVY DUTY LEVER HOIST MODEL : HDLH A620”
