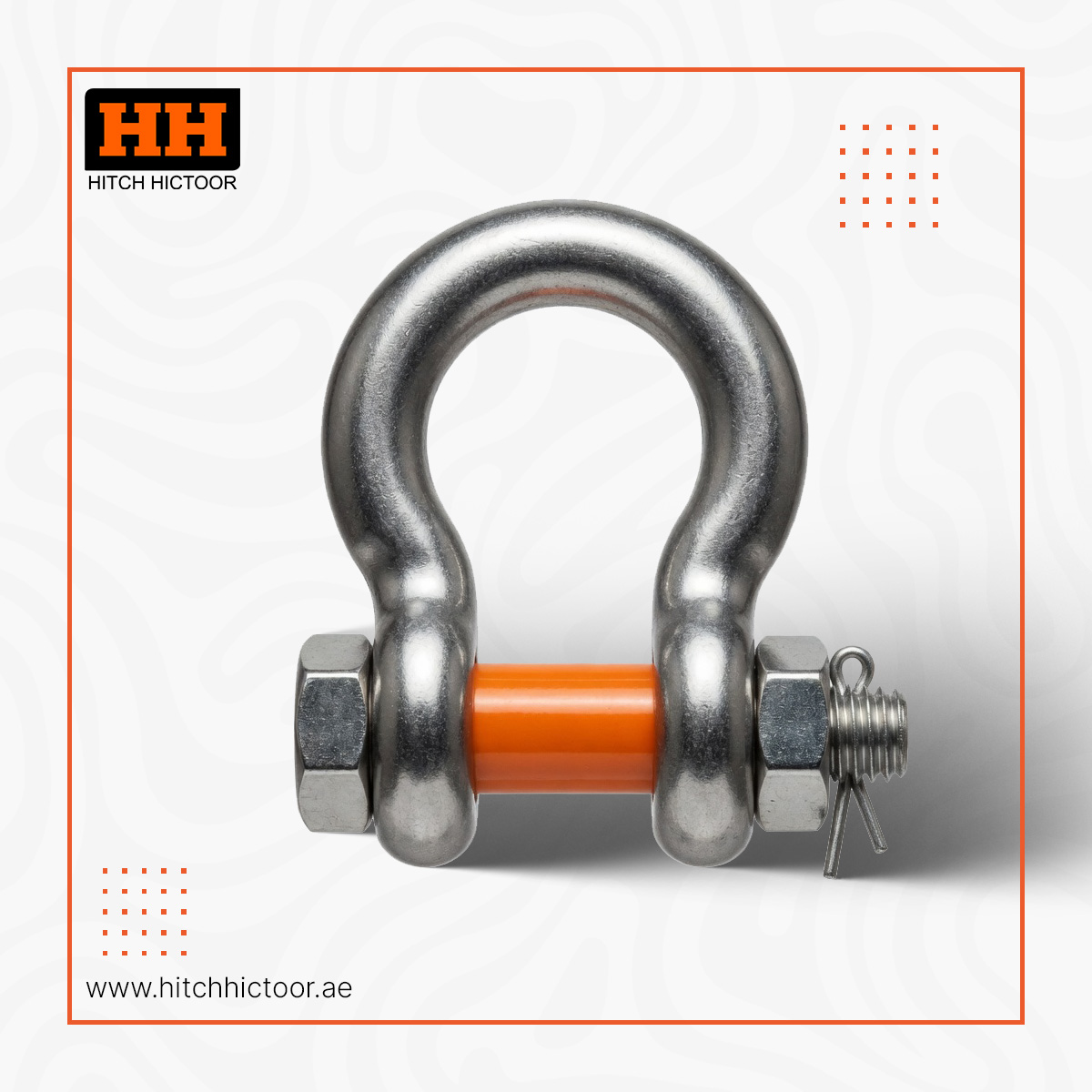

HH Bolt & Nut Bow Shackle G2130

Technical information:

  • Grade 6 high tensile steel body and pin , quenched and tempered .
  • Hot dipped galvanised finish with orange color bolt .
  • Meets the W.L.L performance requirements of B.S EN 13889 and
    US Fed Spec. RR-C 271 .
  • Temperature range 0 ºC up to +200 ºC
  • Minium breaking load is 6 times the W.L.L.
  • Marked with material grade , manufacturers ID , Product ID Mark
    and traceability Code .
  • Mill Test Certifacte .

Category:

Description

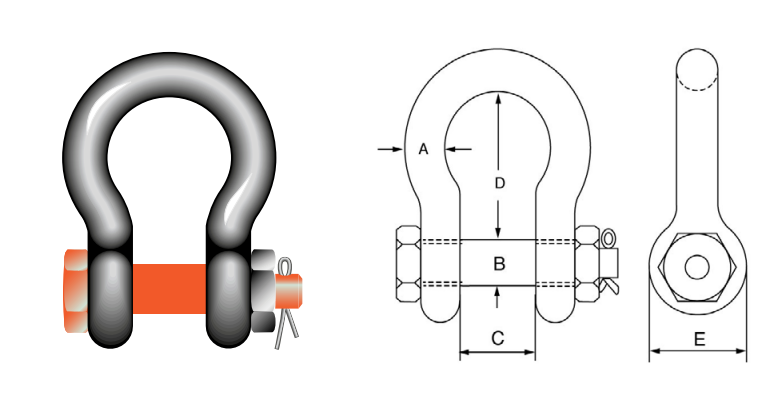

Product code SIZE(INCH) WLL(t) A(mm) B(mm) C(mm) D(mm) E(mm) NET WEIGHT(kg)
HHSAB.5 1/4 0.5 6.4 8 12 28.6 20 0.07
HHSAB.75 5/16 0.75 8 10 13 31 21 0.13
HHSAB1 3/8 1 9.5 12 17 36.5 26 0.17
HHSAB1.5 7/16 1.5 11 12 18 42.5 29 0.25
HHSAB2 1/2 2 12.7 16 20.6 47.3 32 0.44
HHSAB3.25 5/8 3.25 16 19.8 27 60.5 43 0.79
HHSAB4.75 3/4 4.75 19 22 32 71.5 51 1.26
HHSAB6.5 7/8 6.5 22 27 36.6 84 58 1.88
HHSAB8.5 1 8.5 25 30 43 96 68 2.78
HHSAB9.5 1-1/8 9.5 28.5 33 46 108 75 3.87
HHSAB12 1-1/4 12 31.8 36 51.6 119 83 5.26
HHSAB13.5 1-3/8 13.5 34.9 39 57 133.5 92 6.94
HHSAB17 1-1/2 17 38 42 60 147 99 8.79
HHSAB25 2 25 44 52 73 178 126 14.99
HHSAB35 2-1/2 35 50 56 82 197 138 20.65
HHSAB55 3 55 63.5 68 105 267 180 41.05
HHSAB85 3-1/2 85 75 85 127 320 190 62
HHSAB120 4 120 88 95 133 372 240 106
