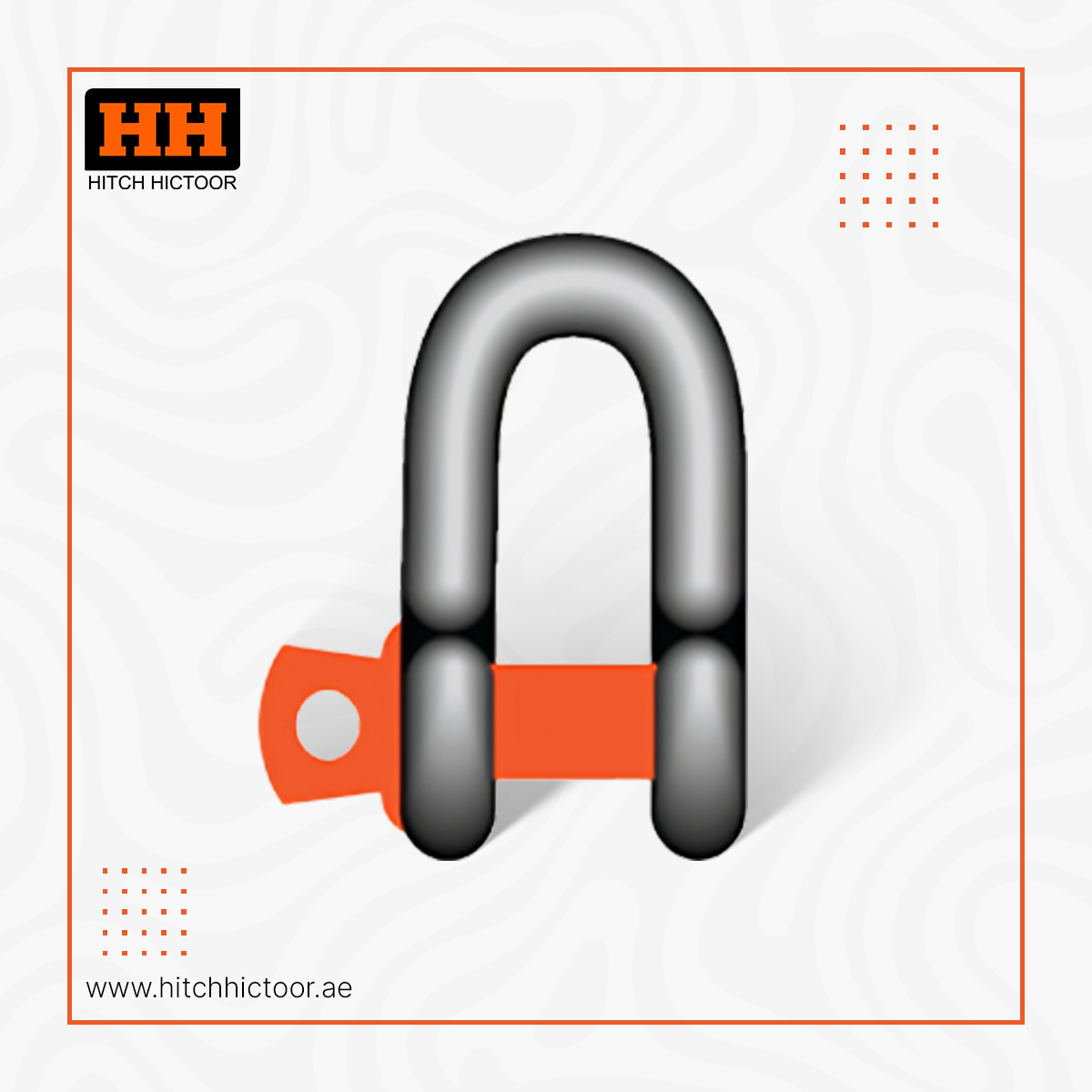

HH Screw Pin D-Shackle G210

Technical information:

  • Grade 6 high tensile steel body and pin , quenched and tempered .
  • Hot dipped galvanised finish with orange color pin .
  • Meets the W.L.L performance requirements of B.S EN 13889 and
    US Fed Spec. RR-C 271 .
  • Temperature range 0 ºC up to +200 ºC
  • Minium breaking load is 6 times the W.L.L.
  • Marked with material grade , manufacturers ID , Product ID Mark
    and traceability Code .
  • Mill Test Certifacte .

Category:

Description

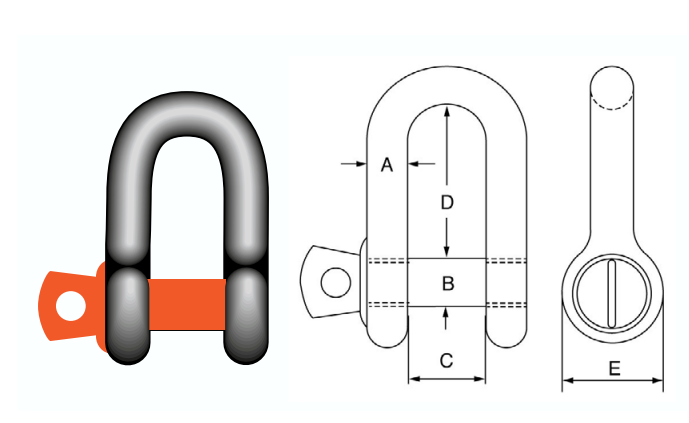

Dimension

Product code SIZE(INCH) WLL(t) A(mm) B(mm) C(mm) D(mm) E(mm) NET WEIGHT(kg)
HHSCD1 3/8 1 9.5 11 17 32 26 0.15
HHSCD1.5 7/16 1.5 11 12 18 36.5 29 0.21
HHSCD2 1/2 2 12.7 16 20.6 41.3 32 0.37
HHSCD3.25 5/8 3.25 16 19.8 27 51 43 0.65
HHSCD4.75 3/4 4.75 19 22 32 62 51 1.04
HHSCD6.5 7/8 6.5 22 27 36.6 74.8 58 1.56
HHSCD8.5 1 8.5 25 30 43 81 68 2.32
HHSCD9.5 1-1/8 9.5 28.5 33 46 90 75 3.28
HHSCD12 1-1/4 12 31.8 36 51.6 100.8 83 4.51
HHSCD13.5 1-3/8 13.5 34.9 39 57 112.5 92 5.93
HHSCD17 1-1/2 17 38 42 60 125 99 7.89
HHSCD25 2 25 44 52 73 146.5 126 13.4
HHSCD35 2-1/2 35 50 56 82 171 138 18.85
HHSCD55 3 55 63.5 68 105 203 180 37.86
HHSCD85 3-1/2 85 75 85 127 230 190 58
HHSCD120 4 120 88 95 133 262 240 99
