Technical information:
- Alloy steel , quenched and tempered.
- Orange Painted Finish .
- Designed for use with 1 or 2 leg slings.
- Marked with material grade , manufacturers ID ,
Product ID Mark and traceability Code . - Mill Test Certifacte .
- 4 times Safety Factor
Description

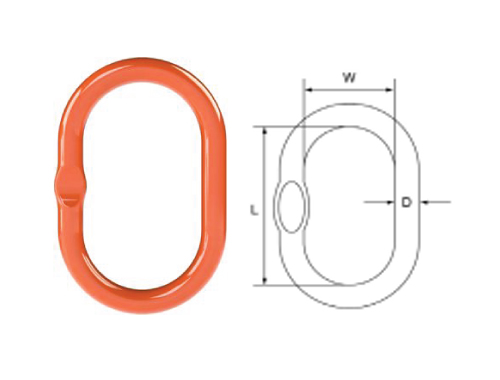

Dimension
|
Product code |
SIZE(inch) |
WLL(t) |
D(mm) |
L(mm) |
W(mm) |
NET WEIGHT(kg) |
|
HML14 |
1/2 |
2.50 |
14 |
100 |
60 |
0.38 |
|
HML18 |
11/16 |
4.00 |
18 |
160 |
90 |
0.85 |
|
HML20 |
3/4 |
6.50 |
20 |
160 |
90 |
1.20 |
|
HML22 |
7/8 |
8.00 |
22 |
180 |
100 |
1.63 |
|
HML25 |
1 |
11.50 |
25 |
270 |
140 |
2.13 |
|
HML28 |
1-1/8 |
12.50 |
28 |
270 |
140 |
3.81 |
|
HML32 |
1-1/4 |
16.00 |
32 |
270 |
140 |
5.05 |
|
HML36 |
1-3/8 |
24.00 |
36 |
285 |
155 |
6.83 |
|
HML40 |
1-1/2 |
25.00 |
40 |
300 |
160 |
8.90 |
|
HML45 |
1-3/4 |
31.50 |
45 |
340 |
180 |
12.80 |
|
HML50 |
2 |
45.00 |
50 |
390 |
215 |
17.30 |
