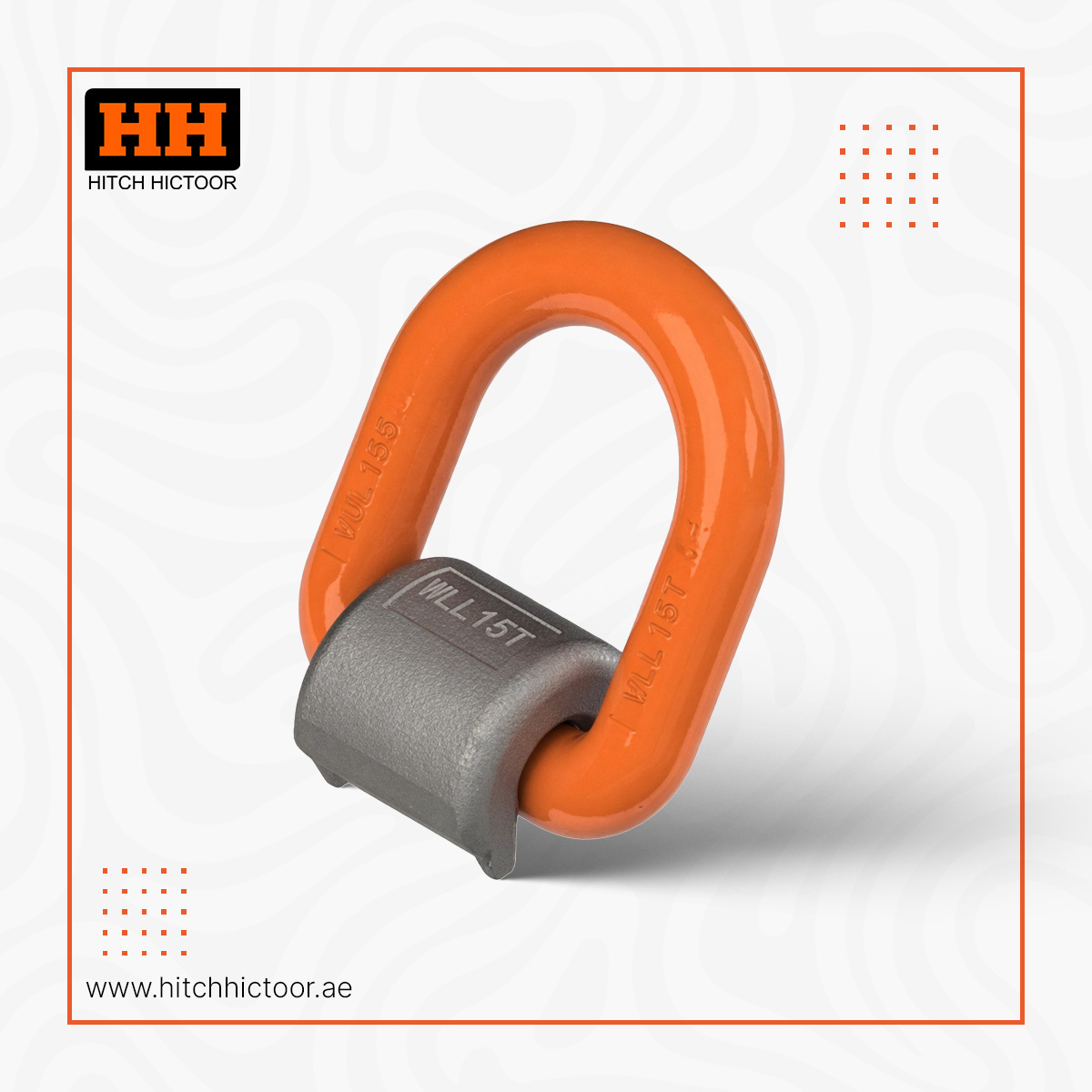

Technical information:
- Ring : Grade 80 Alloy steel , quenched and tempered.
- Base : 16 Mn Carbon steel base .
- Orange Painted Finish .
- Welding must be carried out by a qualified welder according to BS EN 287-1 .
- Minimum breaking load is 4 times the W.L.L.
- Marked with CE , W.L.L , material grade , Manfacturers ID and size .
- Mill Test Certifacte .
Description

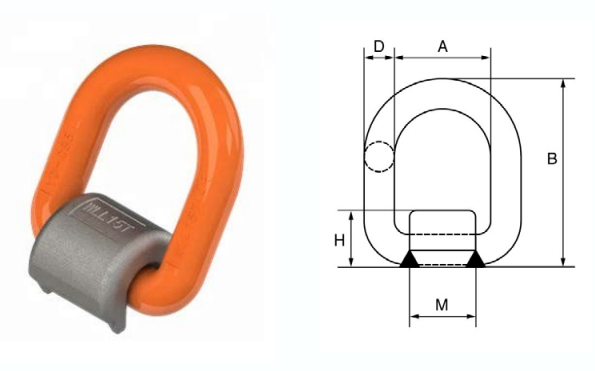

| Product code | WLL(t) | A(mm) | B(mm) | D(mm) | H(mm) | M(mm) | NET WEIGHT(kg) |
| HWDR1 | 1.12 | 41 | 78.5 | 13 | 33.5 | 37 | 0.4 |
| HWDR2 | 2 | 42 | 88 | 14 | 33.5 | 40 | 0.47 |
| HWDR3 | 3.15 | 45 | 94 | 17 | 39 | 42.5 | 0.69 |
| HWDR5 | 5.3 | 55 | 118 | 22 | 49 | 50 | 1.46 |
| HWDR8 | 8 | 70 | 141 | 26.5 | 54 | 66.5 | 2.5 |
| HWDR10 | 10 | 85 | 165 | 28 | 63.5 | 90 | 3.59 |
| HWDR15 | 15 | 97 | 188 | 34 | 72 | 90 | 5.79 |
