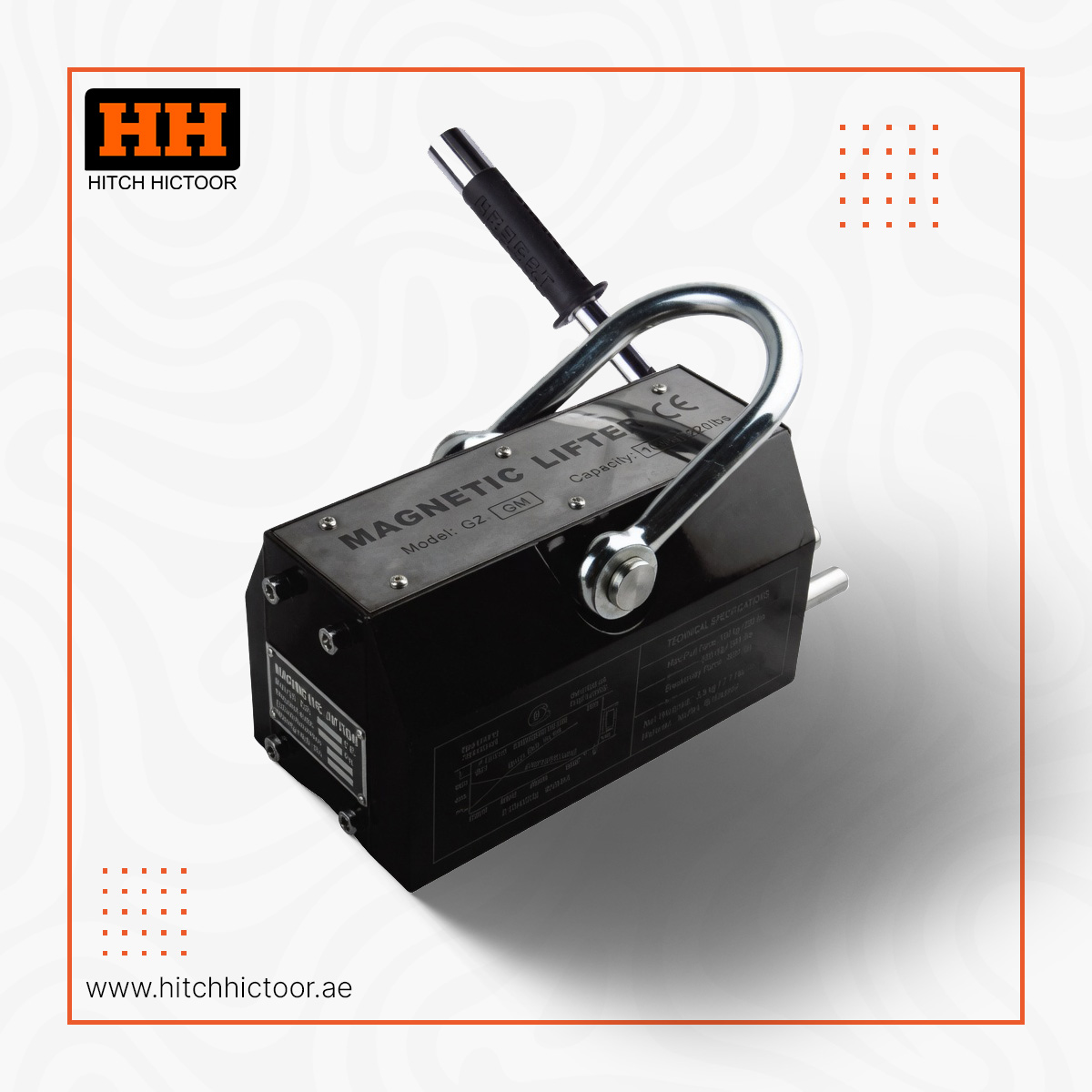

MAGNETIC LIFTER MODEL : PML TYPE

  • PERMANENT MAGNETIC LIFTER FOR SAFE, EASY OPERATION AND HANDLING.
  • Requires no extra power.
  • Simple & quick operation.
  • Designed for the lifting & handling of magnetic material.
  • Conforms to EN 13155 TUV approved.
  • Strong magnetic force.
  • 5 times Safety Factor.
Category:

Description

TECHNICAL DATA

Product Code Plate Capacity Cylindrical Capacity Tear-Off Force L W H I Working Temperature Weight
kgs kgs kgs mm mm mm mm °C kgs / ea
PML6 600 200 2100 236 118 120 219 -40 to +80 24
PML10 1000 300 3500 264 168 168 266 -40 to +80 50
PML20 2000 600 7000 378 230 217 462 -40 to +80 125
PML30 3000 1000 10500 453 290 265 567 -40 to +80 220
PML50 5000 1500 17500 647 290 265 707 -40 to +80 355
PML60 6000 2000 19200 713 290 265 707 -40 to +80 398
