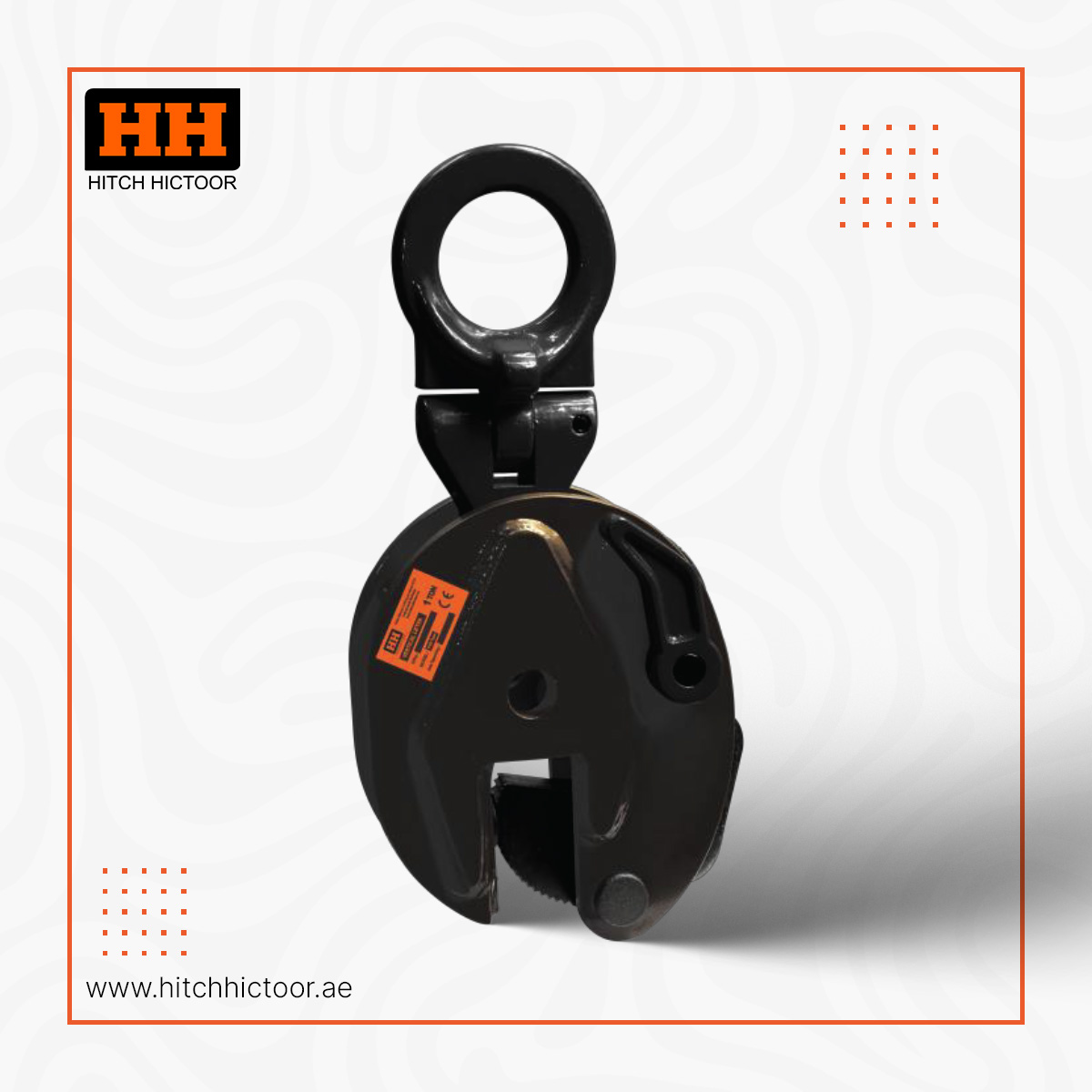

Vertical Plate Lifting Clamp – PCD Type

THE HH VERTICAL PLATE LIFTING CLAMP Is HIGHLY EFFICIENT AUXILIARY LIFTING PRODUCT.

  • Meets the WLL performance requirements of BS EN 13155.
  • Black Color finish.
  • Especially hardened jaws for extra durability.
  • Lifting under 20% of the rated capacity loading is strictly forbidden.
  • Overloading is not permitted.
  • The Steel plate lifted should be under the HRC 37 (HB 345).
  • The HH Clamp is designed to lift one plate at a time
  • Always ensure the operator has access to operating instructions.
Category:

Description

TECHNICAL DATA

Product Code Capacity Jaw Opening T U V L Weight
t mm mm mm mm mm kgs / ea
PCD0.5T 0.5 0 – 15 205 30 105 48 2
PCD1T 1 0 – 20 300 50 145 66 5
PCD2T 2 0 – 25 385 68 175 75 8
PCD3.2T 3.2 0 – 30 430 75 215 102 15
PCD5T 5 0 – 50 500 68 232 112 23
PCD8T 8 0 – 45 600 88 290 125 37
PCD12T 12 50 – 90 700 90 420 128 50
PCD16T 16 60 – 100 710 100 445 128 65
