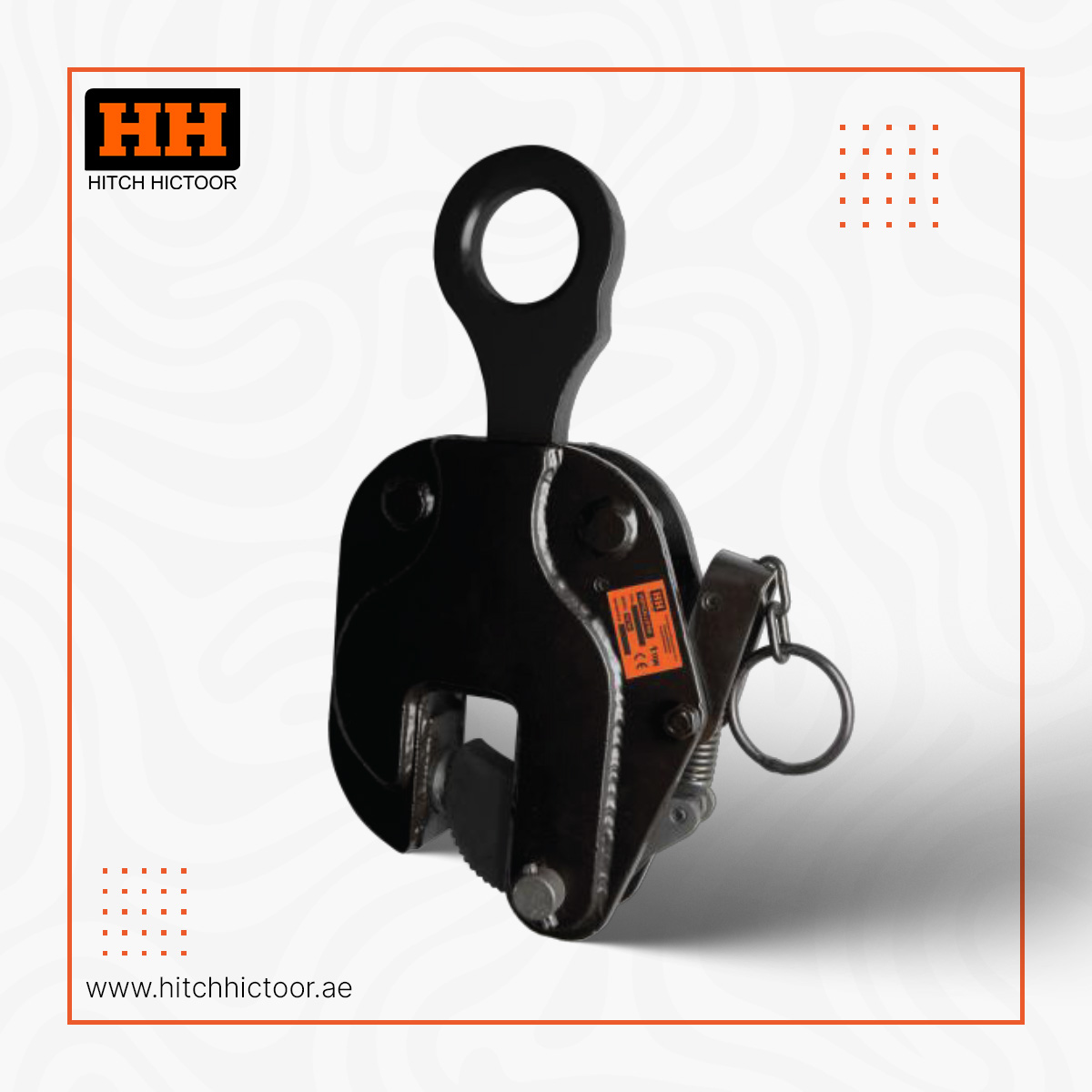

THE HH VERTICAL PLATE LIFTING CLAMP Is HIGHLY EFFICIENT AUXILIARY LIFTING PRODUCT.
- Meets the WLL performance requirements of BS EN 13155.
- Black color finish.
- Especially hardened jaws for extra durability.
- Lifting under 20% of the rated capacity loading is strictly forbidden.
- Overloading is not permitted.
- The Steel plate lifted should be under the HRC 37 (HB 345).
- The HH Clamp is designed to lift one plate at a time
- Always ensure the operator has access to operating instructions.
Description
TECHNICAL DATA
| Product Code | Capacity | Test Load | Jaw Opening | T | U | V | L | Weight |
| t | t | mm | mm | mm | mm | mm | kgs / ea | |
| JCD0.8T | 0.8 | 1 | 0 – 16 | 123 | 265 | 40 | 44 | 2.8 |
| JCD1T | 1 | 2 | 0 – 22 | 124 | 295 | 50 | 54 | 3.6 |
| JCD2T | 2 | 4 | 0 – 30 | 154 | 385 | 54 | 56 | 5.5 |
| JCD3T | 3 | 6 | 0 – 40 | 180 | 400 | 60 | 72 | 10 |
| JCD5T | 5 | 10 | 0 – 50 | 222 | 483 | 68 | 76 | 17 |
| JCD8T | 8 | 16 | 0 – 60 | 265 | 535 | 65 | 90 | 26 |
| JCD12T | 12 | 24 | 0 – 90 | 290 | 600 | 80 | 95 | 32 |
| JCD16T | 16 | 32 | 60 – 125 | 408 | 700 | 80 | 113 | 48 |
