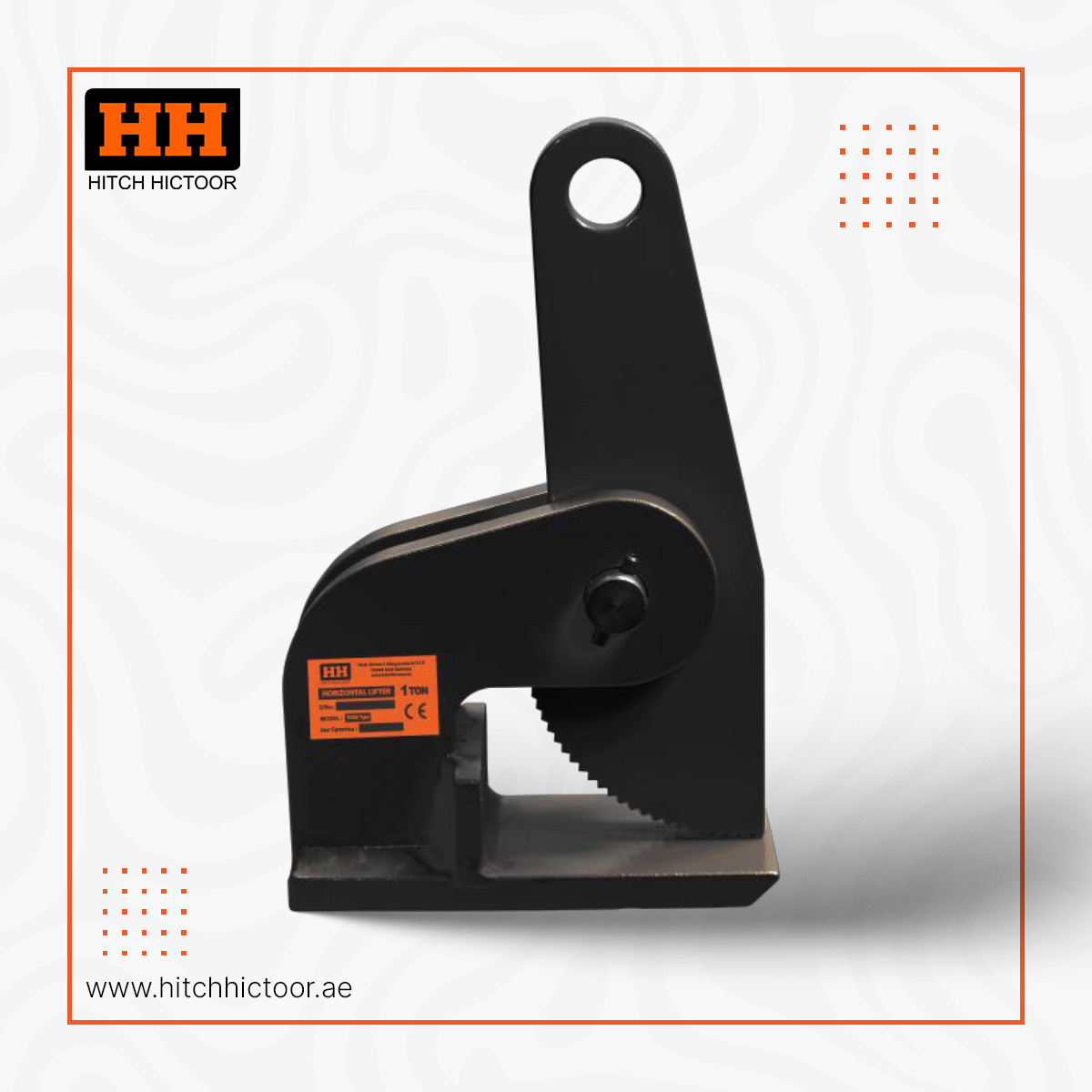

THE HH HORIZONTAL PLATE LIFTING CLAMPS, USED IN PAIRS, ARE IDEAL FOR MOVING STEEL PLATE OR MACHINERY IN A HORIZONTAL POSITION.
- Meets the WLL performance requirements of BS EN 13155.
- Black color finish.
- Especially hardened steel is used in both the serrated teeth and jaws.
- Simple to use with two leg slings at a maximum angle of 90 degrees.
- The HH Clamp is designed to lift one plate at a time.
- The steel plate lifted should be under HRC 37 (HB 345).
- Always ensure the operator has access to operating instructions.
Description
Dimension
| Product Code | Capacity Per Pair | Jaw Opening | T | U | V | L | Weight |
| t | mm | mm | mm | mm | mm | kgs / per pair | |
| THKS0.5T | 0.5 | 0 – 35 | 165 | 60 | 43 | 25 | 6.2 |
| THKS1T | 1 | 0 – 60 | 180 | 80 | 68 | 25 | 12 |
| THKS1.6T | 1.5 | 0 – 60 | 180 | 80 | 68 | 25 | 13 |
| THKS2T | 2 | 0 – 60 | 180 | 80 | 68 | 25 | 15 |
| THKS3T | 3 | 0 – 60 | 220 | 90 | 80 | 25 | 20 |
| THKS4T | 4 | 0 – 60 | 220 | 90 | 70 | 30 | 23 |
| THKS5T | 5 | 0 – 60 | 220 | 110 | 74 | 30 | 31 |
| THKS10T | 10 | 0 – 60 | 220 | 130 | 78 | 40 | 46 |
