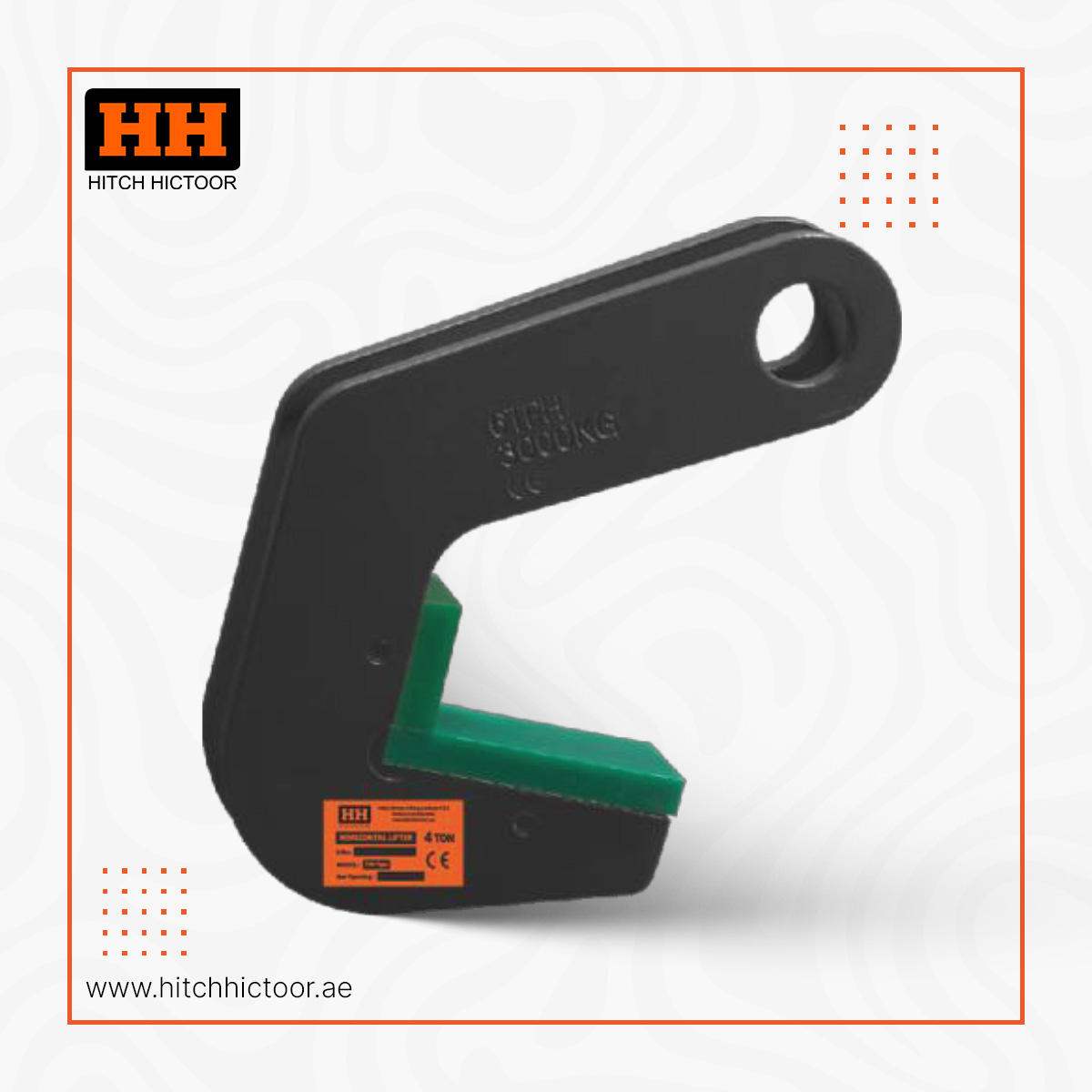

Pipe Clamp F Model MODEL : PFH TYPE

Technical information:

  • For horizontal lifting and transporting of steel and concrete pipes.
  • Compact shapes and relatively low own weight with a high lifting capacity.
  • The surface is equipped with “special” plastic.
  • The DS-TPH will be delivered per pair.
  • Plastic cover is easy to change.
  • Painted finish.
  • Quick and easy operation.
  • Marked with CE , capacity, manufacturers ID and traceability code.
  • Mill Test Certification available
Category:

Description

TECHNICAL DATA

Product Code Capacity Per Pair R A B C D E T Weight
kgs mm mm mm mm mm mm mm kgs / pair
TPH1.5T 1,500 40 127 30 220 70 35 27 1.8
TPH3T 3,000 40 142 32 228 70 35 27 2.9
TPH4T 4,000 50 144 32 228 70 40 30 4
TPH6T 6,000 50 152 34 232 70 40 30 5
TPH8T 8,000 70 155 34 260 70 42 30 6.7
TPH12T 12,000 70 175 36 322 70 46 33 10
TPH16T 16,000 70 175 36 322 70 56 40 13
