Description
TECHNICAL DATA
| TECHNICAL SPECIFICATION |
Product Code |
Capacity |
Classification |
Duty Rating |
Lifting Speed |
Hoist Motor |
Traveling Speed |
Trolley Motor |
Beam Flange |
Load Chain Dimension |
Load-Chain Falls |
Net weight (kg) with 3m Load Chain |
|
(t) |
FEM/ISO |
(ED) |
(m/min) |
(kW) |
(m/min) |
kW |
(mm) |
(mm) |
|
|
| SHH-A-100-4S |
10 |
2Am/M5 |
40% |
3 |
2×3 |
/ |
/ |
/ |
11.2 × 34 |
4 |
320 |
| SHH-A-100-4D |
10 |
2Am/M5 |
26.6% / 13.4% |
3 / 1 |
2×3 / 1 |
/ |
/ |
/ |
11.2 × 34 |
4 |
364 |
| SHH-AM-100-4S |
10 |
2Am/M5 |
40% |
3 |
2×3 |
11 |
0.75 |
150–220 |
11.2 × 34 |
4 |
420 |
| SHH-AM-100-4D |
10 |
2Am/M5 |
26.6% / 13.4% |
3 / 1 |
2×3 / 1 |
11 |
0.75 |
150–220 |
11.2 × 34 |
4 |
464 |

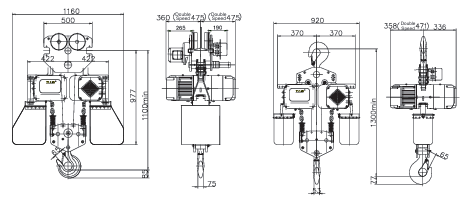

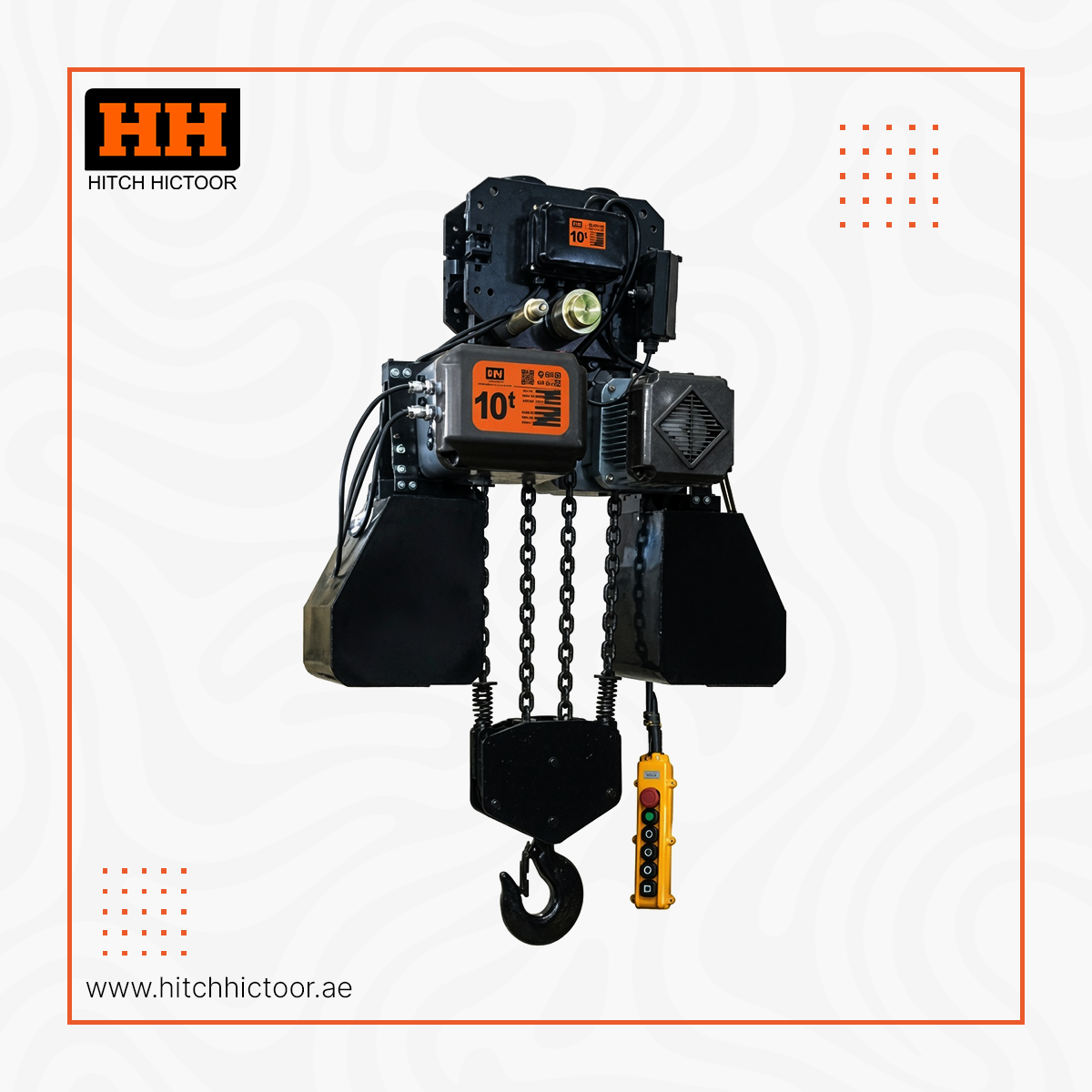

Electric Chain Hoist With Trolley Model: SHH-AM – M5
