Technical information:
- Alloy steel, quenched and tempered.
- Orange Painted Finish.
- Meets the W.L.L performance requirements of B.S EN 1677-1.
- Marked with material grade, manufacturer’s ID, Product ID Mark and traceability Code.
- Mill Test Certificate.

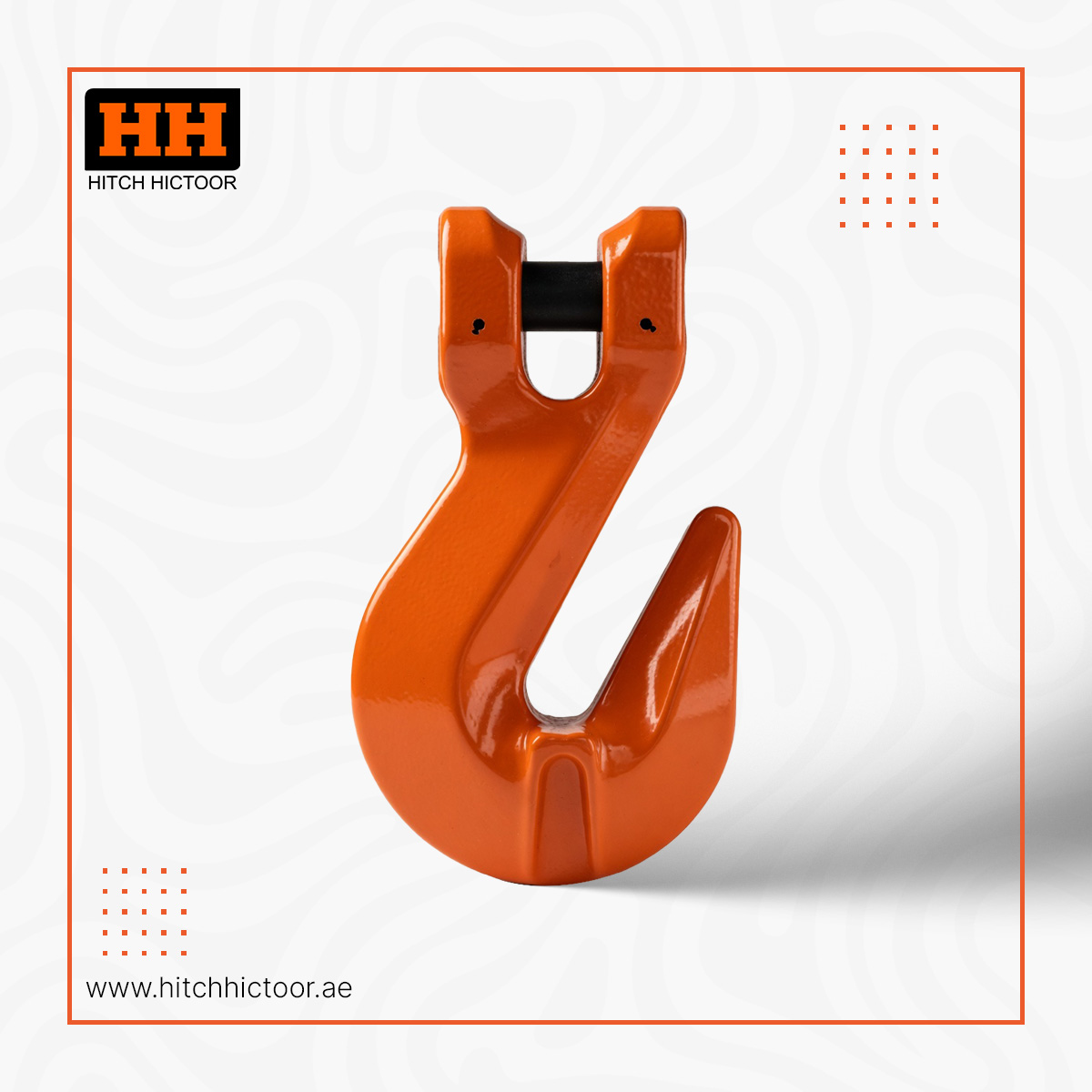

- Clevis fitting allows for a direct connection to the chain.
- 4 times Safety Factor.
Description

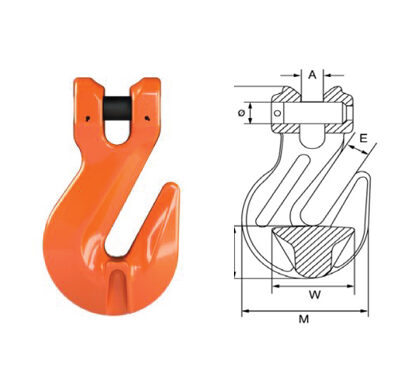

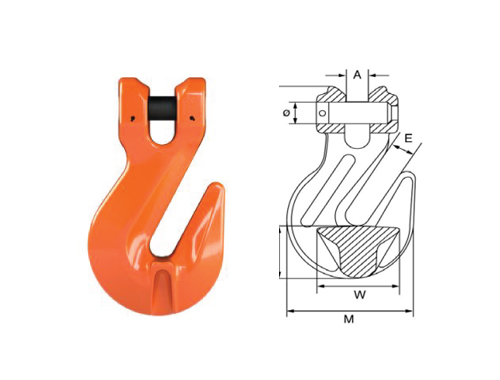

| Product code | SIZE(inch) | WLL(t) | A(mm) | E(mm) | H(mm) | L(mm) | M(mm) | W(mm) | NET WEIGHT(kg) |
| HCG-7/8 | 5/16 | 2 | 9.5 | 10.5 | 21 | 89 | 53 | 33.5 | 0.32 |
| HCG-10 | 3/8 | 3.15 | 12.5 | 13 | 29 | 126 | 71 | 46 | 0.73 |
| HCG-13 | 1/2 | 5.30 | 15 | 16.5 | 42.5 | 163.5 | 90 | 57.5 | 1.6 |
| HCG-16 | 5/8 | 8 | 18.5 | 19 | 45.5 | 183.5 | 113 | 74 | 2.8 |
| HCG-18/20 | 3/4 | 12.5 4 | 24 | 24 | 56 | 219 | 143 | 74 | 5 |
| HCG-22 | 7/8 | 15 | 25 | 27 | 68.5 | 254 | 160 | 90 | 6.3 |
| HCG-26 | 1 | 21.2 | 30 | 30 | 77 | 309 | 171 | 102 | 14.5 |
