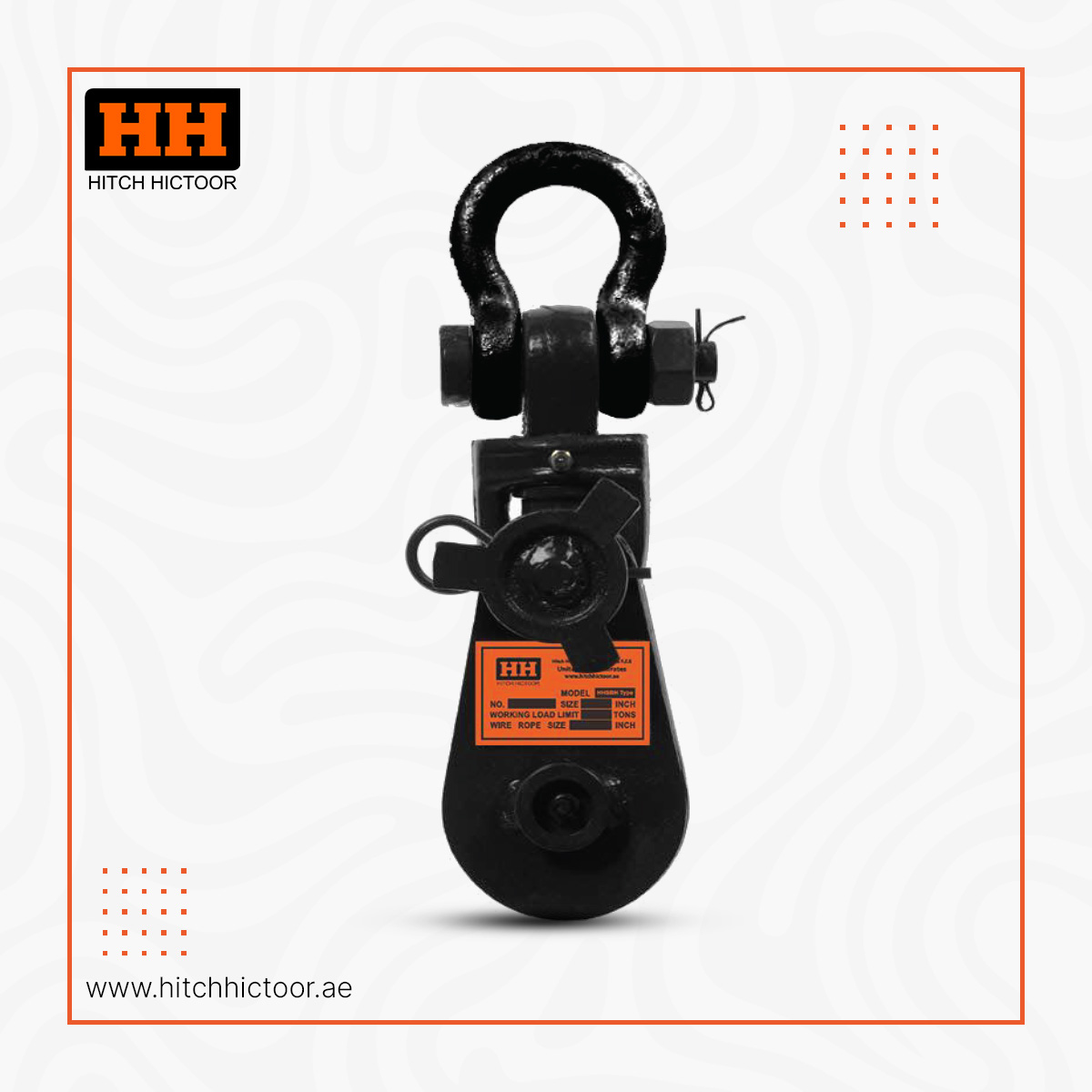

HH SNATCH BLOCK SHACKLE MODEL : HHSBS

  • Carbon steel, light and robust design.
  • Black Color finish.
  • Minimum breaking load is 4 times the W.L.L.
  • 3” and 4.1/2” blocks are fitted with bronze bush. All other sizes are fitted with roller bearings.
  • Suitable for all types of industrial and commercial lifting and lowering applications.
  • L.L. is on the head fitting.
  • Test Certification available.

Category:

Description

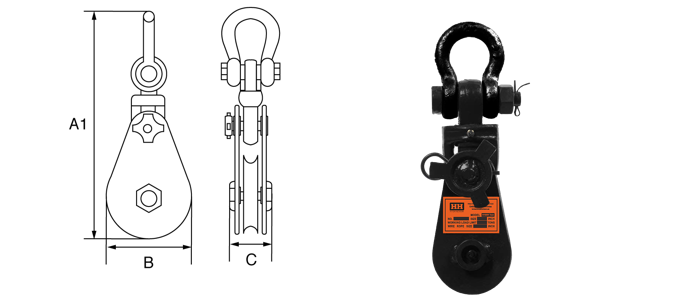

Dimension

Product Code Sheave Dia W.L.L. Wire Dia A1 B C Weight
  inches t mm mm mm mm kgs
HHSBS32 3 2 7-9 292 82 70 4
HHSBS44 4.1/2 4 10-12 358 120 70 6
HHSBS64 6 4 16-18 412 160 70 8
HHSBS68 6 8 16-18 475 160 93 15
HHSBS68 6 8 20-22 498 160 93 14
HHSBS88 8 8 20-22 549 210 93 20
HHSBS1012 10 12 20-22 701 260 114 36
HHSBS815 8 15 20-22 672 210 98 34
HHSBS1215 12 15 24-26 797 310 133 54
HHSBS1422 14 22 28-32 960 365 140 112
HHSBS1630 16 30 32-35 1085 415 155 170
HHSBS2030 20 30 32-35 1177 514 162 213
HHSBS2450 24 50 46-50 1445 625 240 408
