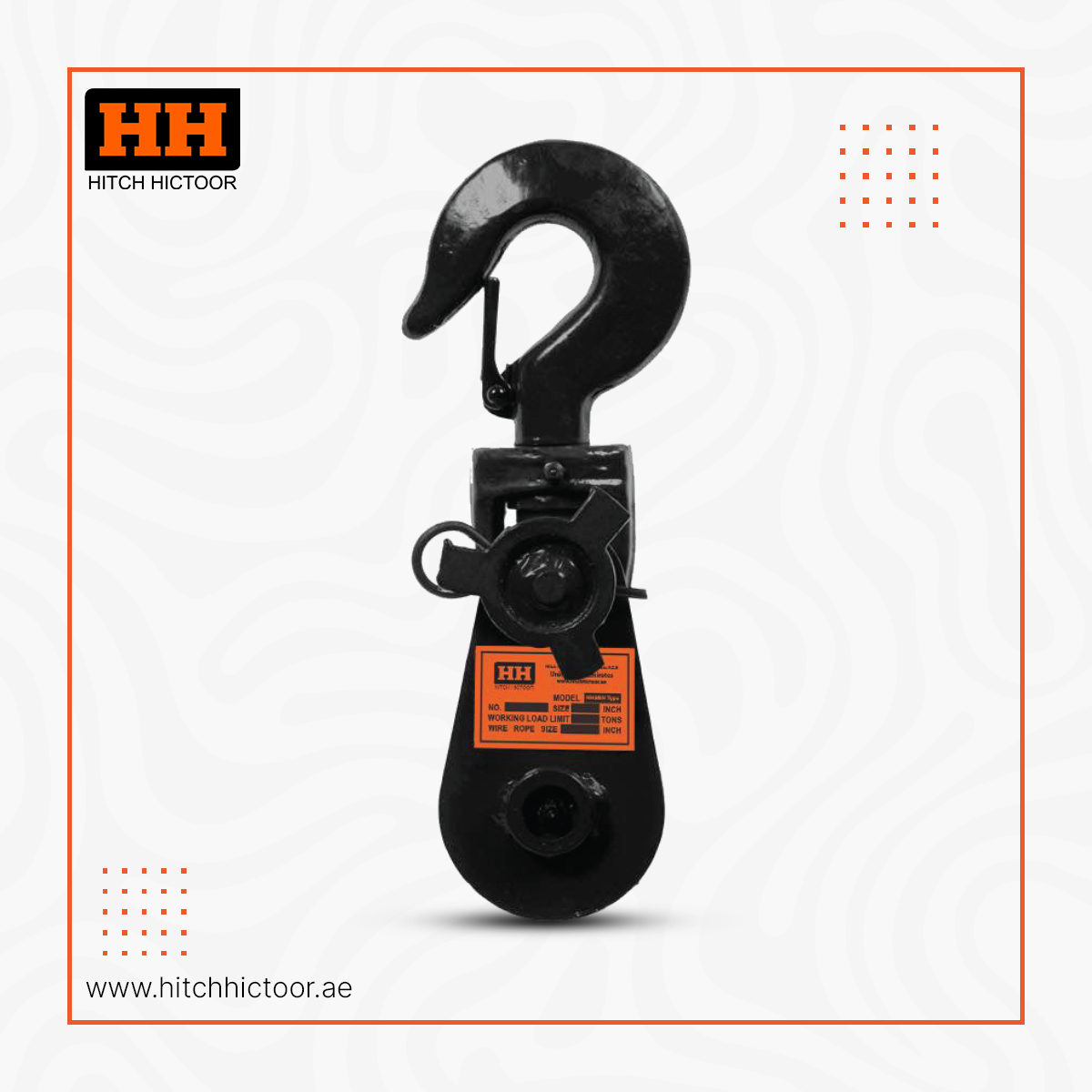

HH Wire Rope Snatch Block Hook Head – HHSBH

  • Carbon steel, light and robust design.
  • Matt black finish.
  • Minimum breaking load is 4 times the W.L.L.
  • Hooks are supplied with heavy duty safety catches.
  • 3” and 4.1/2” blocks are fitted with bronze bush. All other sizes are fitted with roller bearings.
  • Suitable for all types of industrial and commercial lifting and lowering applications.
  • W.L.L. is on the head fitting.
  • Test Certification available.

Category:

Description

Dimension

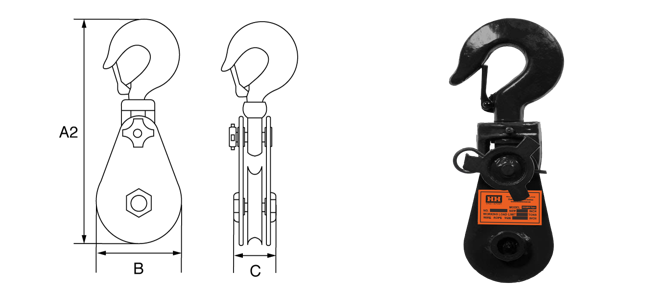

Product Code Sheave Dia W.L.L. Wire Dia A2 B C Weight
  inches t mm mm mm mm kgs
HHSBH32 3 2 7-9 286 82 70 4
HHSBH44 4.1/2 4 10-12 345 120 70 6
HHSBH46 6 4 16-18 412 160 70 8
HHSBH6816 6 8 16-18 480 160 93 15
HHSBH6820 6 8 20-22 475 160 93 14
HHSBH88 8 8 20-22 528 210 93 20
HHSBH1012 10 12 20-22 679 260 114 36
HHSBH815 8 15 20-22 663 210 98 34
HHSBH1215 12 15 24-26 884 310 133 54
HHSBH1422 14 22 28-32 952 365 140 112
HHSBH1630 16 30 32-35 1085 415 155 170
HHSBH2030 20 30 32-35 1177 514 162 213
HHSBH2450 24 50 46-50 1445 625 240 408
