Technical information:
- Alloy steel , quenched and tempered.
- Orange Painted Finish .
- Designed for use with 3 or 4 leg slings.
- Marked with material grade , manufacturers ID ,
Product ID Mark and traceability Code . - Mill Test Certifacte .
- 4 times Safety Factor
Description

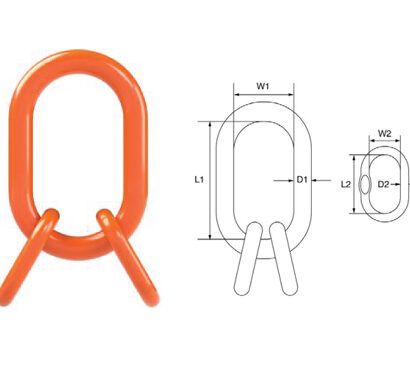

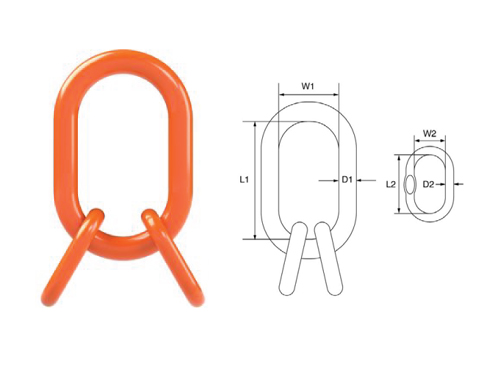

Dimension
|
Product code |
SIZE(inch) |
WLL(t) |
D(mm) |
L1(mm) |
L2(mm) |
W1(mm) |
NET WEIGHT(kg) |
|
HMA1412 |
1/2
|
2.40
|
14
|
100
|
185
|
60
|
0.38 |
|
HMA1814 |
11/16 |
3.20
|
18 |
160
|
260 |
90 |
0.85 |
|
HMA2014 |
3/4 |
4.20
|
20
|
160
|
260 |
90
|
1.20 |
|
HMA2218 |
7/8 |
8.00
|
22 |
180 |
330 |
100 |
1.63 |
|
HMA2520 |
1 |
10.00
|
25 |
270 |
425 |
140 |
2.13 |
|
HMA2822 |
1-1/8 |
12.00 |
28 |
270 |
430 |
140 |
3.81 |
|
HMA3225 |
1-1/4
|
17.00 |
32 |
270 |
450 |
140 |
5.05 |
|
HMA4031 |
1-3/8 |
25.00 |
40
|
300 |
570 |
160 |
8.90 |
|
HMA4536 |
1-1/2
|
31.50 |
45 |
340
|
625 |
180 |
12.80 |
|
HMA5045 |
1-3/4
|
45.00 |
50 |
350 |
690
|
190 |
17.30 |
