Basic Characteristics
With abundant product series and lifting loads between 0.125 T and 6.3 T, various configurations are available.
The leading chain seat, bearing part of the hoist link, can be replaced by a hook, hanger plate, etc.
A new hanging-type structural design is adopted to facilitate the inspection and repair of the lifting chain wheel.
The high-strength alloy design is adopted as a whole, with light weight and small volume.
The modular design is adopted for simple and rapid production, mounting and maintenance.
Mounting method:

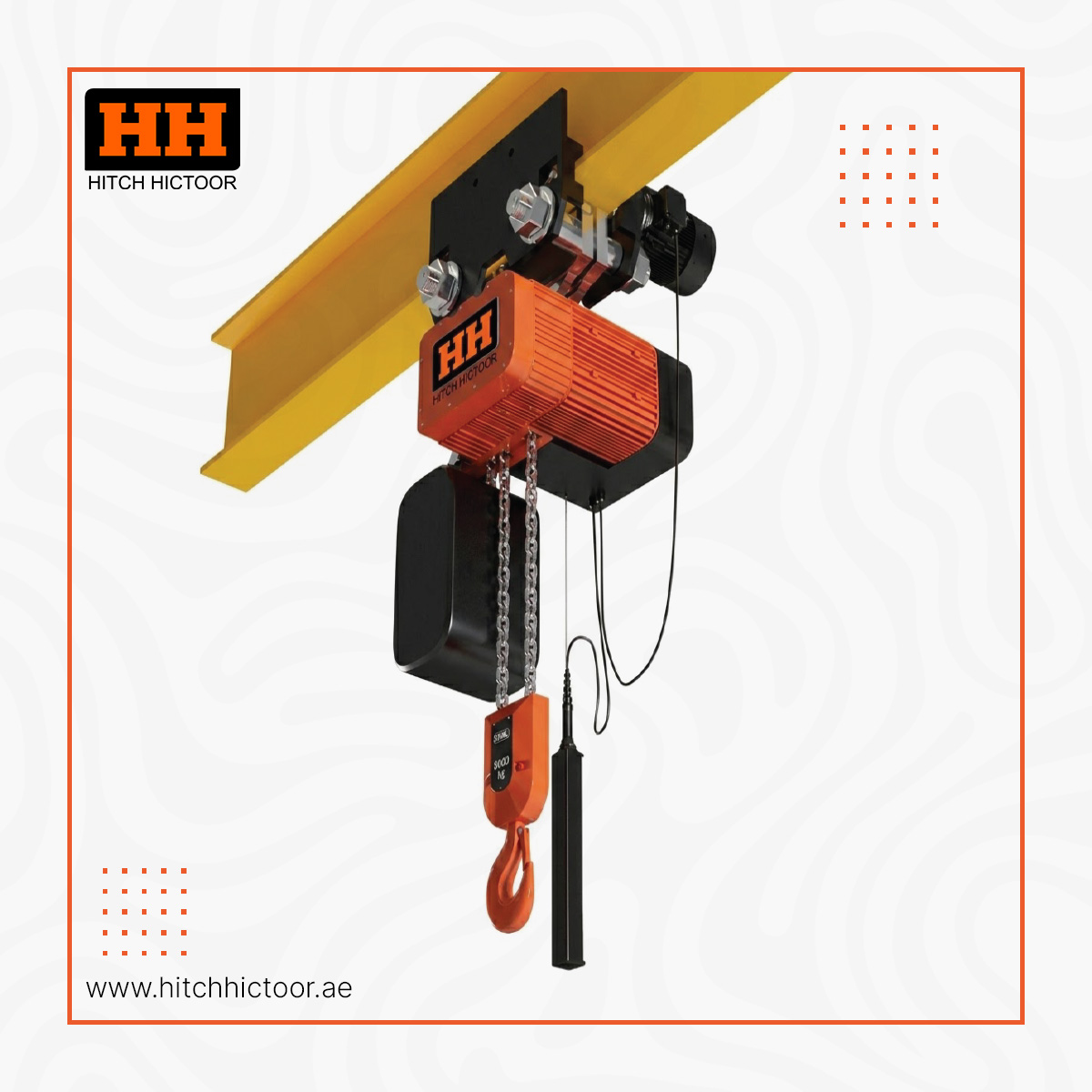

Mounting of motor-driven carrier:
The electric cart with standard configuration adopts the double-speed connection, and the car speed reaches 5/20m/min.
If needed, the single-speed cart could be equipped. The cart wallboard is equipped with an ear protector to prevent the collision of the vehicle wheel and rail when the cart drives to the limit position of both ends. Additionally, the wallboard is equipped with a horizontal guide wheel device to enhance stability during operation, reduce abrasion between the vehicle wheel and rail, and prolong service life.
Description

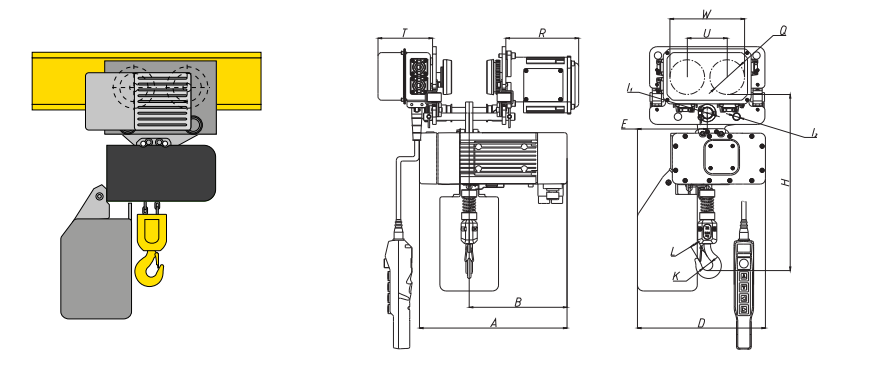

TECHNICAL SPECIFICATION
| Model | H | A | B | D | E | I₁ | I₂ | K | L | W | U | R | T | Q |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC0.5-01 | 480 | 400 | 267 | 349 | 191 | 31 | 20 | 30 | 24 | 204 | 109 | 200 | 149 | 95 |
| SC01-01 | 550 | 500 | 316 | 397 | 210 | 31 | 20 | 37 | 26 | 204 | 109 | 200 | 149 | 95 |
| SC01-02 | 570 | 400 | 267 | 349 | 191 | 31 | 20 | 37 | 24 | 204 | 109 | 200 | 149 | 95 |
| SC016-01 | 640 | 525 | 315 | 440 | 285 | 36 | 20 | 45 | 33.5 | 237 | 127 | 200 | 149 | 110 |
| SC02-02 | 640 | 500 | 315 | 400 | 230 | 36 | 20 | 49 | 39 | 237 | 127 | 200 | 149 | 110 |
| SC025-01 | 650 | 525 | 315 | 440 | 285 | 43 | 20 | 45 | 33 | 265 | 140 | 200 | 149 | 125 |
| SC03-02 | 795 | 525 | 315 | 460 | 305 | 43 | 20 | 56 | 43 | 265 | 140 | 200 | 149 | 125 |
| SC05-02 | 830 | 525 | 315 | 460 | 305 | 43 | 31 | 56 | 43 | 282 | 142 | 200 | 149 | 140 |
TECHNICAL PARAMETERS
| Model | Rated load (Ton) |
Lifting speed (m/min) |
Motor power (kw) |
Rotational speed (1440r/min) |
Insulation grade of motor |
Working voltage | Control voltage | Number of chains |
Chain specification |
Running motor (single speed) | Running motor (frequency conversion) |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power (Kw) |
Rotational speed (r/min) |
Running speed (m) |
Turning radius (mm) |
H-section steel (mm) |
Wheel diameter (mm) |
Power (Kw) |
Rotational speed (r/min) |
Running speed (m) |
Turning radius (mm) |
H-section steel (mm) |
Wheel diameter (mm) |
||||||||||
| SC0.25-01D | 0.25t | 8/2 | 0.8/0.2 | 2880/720 r/min | F级 | 3-Phase 380V 50Hz | 24V/36V/48V | 1 | φ5X16 | 0.4 | 1440 | 11 or 19 | 0.7 | 75-178 | 95 | 0.4 | 1440 | 2-11 or 19 | 0.7 | 75-178 | 95 |
| SC0.5-01D | 0.5t | 8/2 | 0.8/0.2 | 1 | φ5X16 | 0.4 | 0.7 | 75-178 | 95 | 0.4 | 0.7 | 75-178 | 95 | ||||||||
| SC01-01D | 1t | 8/2 | 1.6/0.4 | 1 | φ7X22 | 0.4 | 0.8 | 75-178 | 95 | 0.4 | 0.8 | 75-178 | 95 | ||||||||
| SC01-02D | 1t | 4/1 | 0.8/0.2 | 2 | φ5X16 | 0.4 | 0.8 | 82-178 | 110 | 0.4 | 0.8 | 82-178 | 110 | ||||||||
| SC1.6-01D | 1.6t | 8/2 | 3.6/0.9 | 1 | φ9X27 | 0.4 | 0.9 | 82-178 | 110 | 0.4 | 0.9 | 82-178 | 110 | ||||||||
| SC02-02D | 2t | 4/1 | 1.6/0.4 | 2 | φ7X22 | 0.4 | 0.9 | 82-178 | 110 | 0.4 | 0.9 | 82-178 | 110 | ||||||||
| SC2.5-01D | 2.5t | 8/2 | 3.6/0.9 | 1 | φ11X31 | 0.4 | 1.0 | 100-178 | 125 | 0.4 | 1.0 | 100-178 | 125 | ||||||||
| SC3.2-02D | 3.2t | 4/1 | 3.6/0.9 | 2 | φ9X27 | 0.75 | 1.0 | 100-178 | 125 | 0.75 | 1.0 | 100-178 | 125 | ||||||||
| SC05-02D | 5t | 4/1 | 3.6/0.9 | 2 | φ11X31 | 0.75 | 1.8 | 112-178 | 140 | 0.75 | 1.8 | 112-178 | 140 | ||||||||
