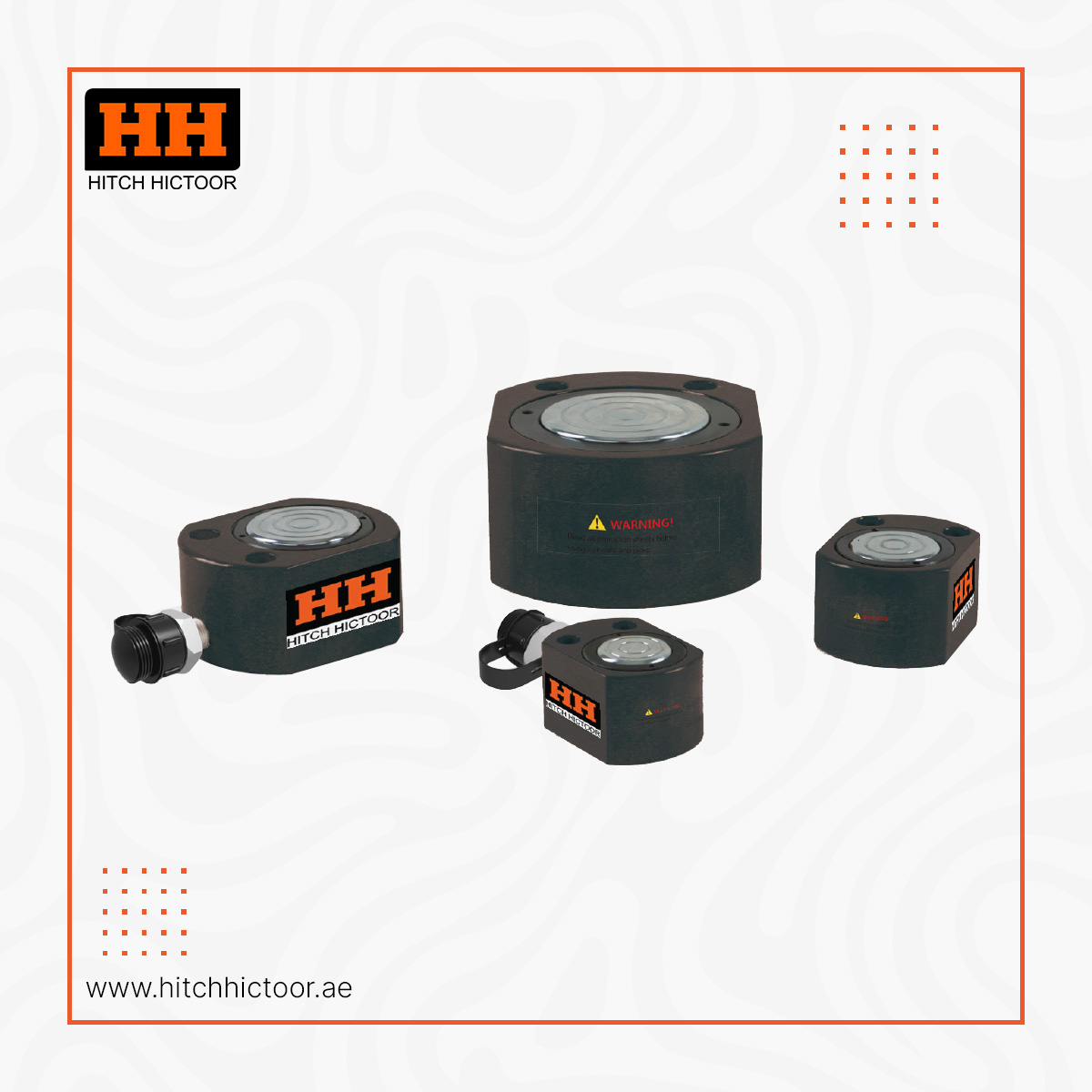

Single-acting Low Height Cylinders

Characteristics:

  • Compact, flat design for use in confined spaces.
  • Single acting, spring return.
  • High strength alloy steel for durability.
  • Chrome plated piston resists wear and corrosion.
  • Baked enamel finish for increased corrosion resistance.
  • Grooved piston rods require no saddle.
  • Mounting holes permit easy fixture mounting.
  • Cylinder bores are roller burnished to harden the surface and make it smoother.
  • Each cylinder has an HC7002M NPT 3/8″ male half coupler and dust cap.
Category:

Description

Model Cylinder Capacity @700 bar Stroke (mm) Effective area (cm²)
Ton kN
HHYG-5B 5 67 7 9.6
HHYG-10B 10 111 10 15.9
HHYG-20B 20 198 11 28.3
HHYG-30B 30 309 13 44.2
HHYG-50B 50 496 16 70.8
HHYG-100B 100 1002 16 143.1
HHYG-150B 150 1496 16 213.7
HHYG-200B 200 1984 20 283.4
Oil Capacity (cm³) Closed Height A (mm) Extended Height B (mm) Outside Dia. DXL (mm) Inside Dia. E (mm) Piston Rod Dia. F (mm) G.W. (Kg) Recommended Pump Model
7 40 47 64×45 35 25 0.75 HHB-700C HHYG-5B
16 48 58 83×60 45 38 1.6 HHYG-10B
34 56 67 99×76 60 50 2.7 HHYG-20B
55 62 75 123×98 75 64 4.6 HHYG-30B
101 72 88 148×120 95 70 7.8 HHB-700 HHYG-50B
200 92 108 188×160 135 100 16.8 HHYG-100B
342 100 116 215×190 165 115 27 HHYG-150B
567 110 130 255×244 190 135 42 HHYG-200B
