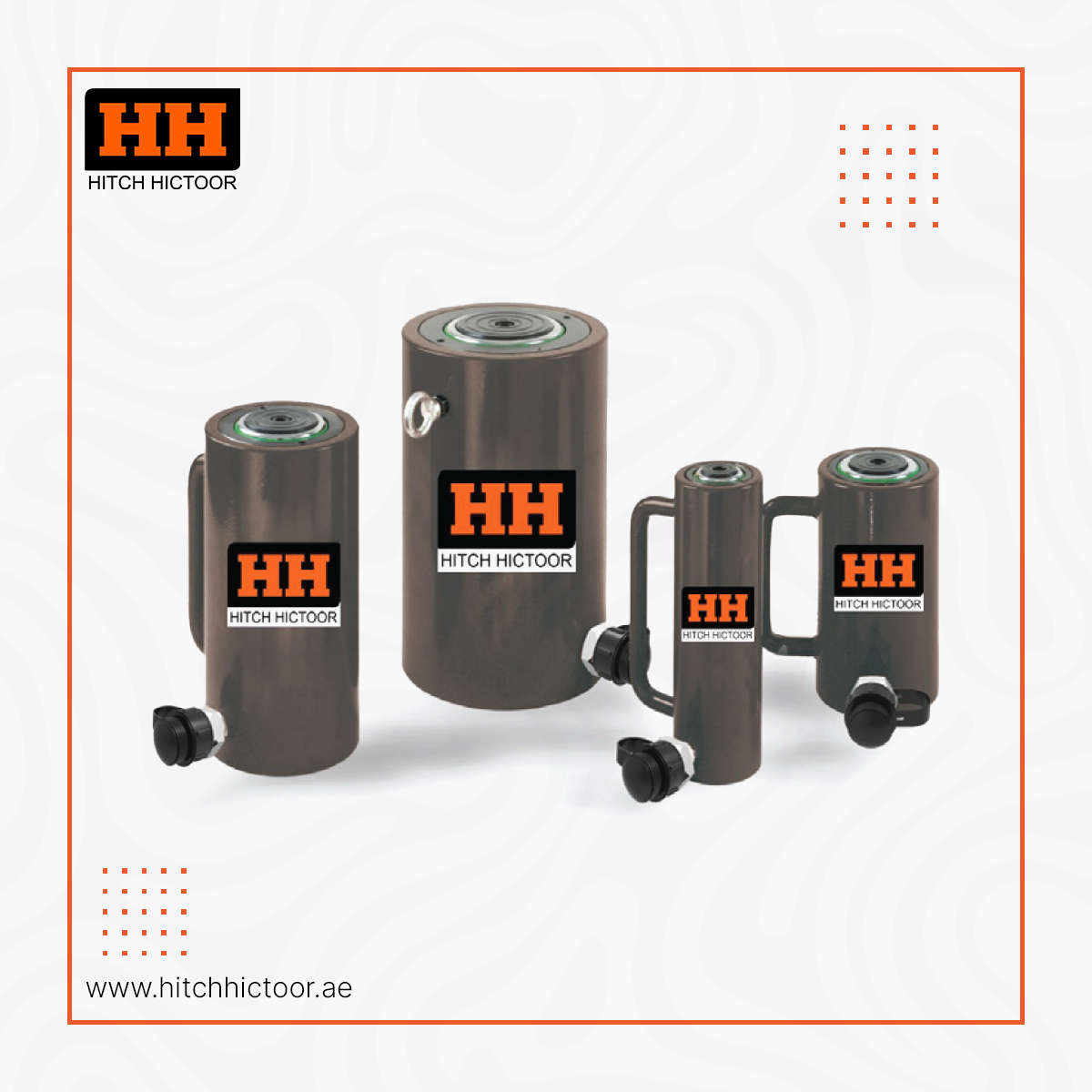

Single-acting General Purpose Cylinders

Characteristics:

  • Designed for use in all positions.
  • High strength alloy steel for durability.
  • Chrome plated piston resists wear and corrosion.
  • Dust wiper on piston rod reduces contamination.
  • Baked enamel finish for increased corrosion resistance.
  • All cylinders are proof tested to 125% of capacity before leaving our factory.
  • 10-100 ton cylinder bores are roller burnished to harden the surface and make it smoother.
  • 10-200 ton cylinder models are spring return, 250-1000 ton cylinder models are load return.
  • Each cylinder has an HC7002M NPT 3/8” male half coupler and dust cap.
  • Each cylinder has a flat grooved saddle.
  • Tilt saddle is available on request.
Category:

Description

Model Cylinder Capacity @700 bar Stroke (mm) Effective Area (cm²) Oil Capacity (cm³) Closed Height A (mm)
Ton kN
HHYG-1050 10 111 50 15.9 85 122
HHYG-10100 100 169 222
HHYG-10150 150 254 126
HHYG-2050 20 198 50 28.3 157 176
HHYG-20100 100 311 226
HHYG-20150 150 465 237
HHYG-3050 30 309 50 44.2 237 187
HHYG-30100 100 471 237
HHYG-30150 150 705 247
HHYG-5050 50 496 50 70.8 389 197
HHYG-50100 100 768 247
HHYG-50150 150 1147 182
HHYG-10050 100 1077 50 153.9 838 232
HHYG-100100 100 1584 282
HHYG-100150 150 2335 184
HHYG-15050 150 1496 50 213.7 1113 234
HHYG-150100 100 2237 284
HHYG-150150 150 3340 204
HHYG-20050 200 1984 50 283.4 1400 254
HHYG-200100 100 2953 304
HHYG-200150 150 4406 348
HHYG-250150 250 2540 150 362.9 5446 348
HHYG-250300 300 10892 498
HHYG-250500 500 2262 267
HHYG-300150 300 3165 150 452.2 6766 367
HHYG-300300 300 13572 517
HHYG-300500 500 2863 315
HHYG-400150 400 4006 150 572.3 8588 415
HHYG-400300 300 17177 565
HHYG-400500 500 3653 345
HHYG-500150 500 5111 150 730.2 10959 445
HHYG-500300 300 21918 595
HHYG-500500 500 4276 371
HHYG-600150 600 5984 150 854.9 12829 471
HHYG-600300 300 25659 621
HHYG-600500 500 5973 424
HHYG-800150 800 8358 150 1194 17919 524
HHYG-800300 300 35838 674
HHYG-100050 50 7261 477
HHYG-1000150 1000 10161 150 1451.5 21783 577
HHYG-1000300 300 43566 727
Extended Height B (mm) Outside Dia. D (mm) Inside Dia. E (mm) Piston Rod Dia. F (mm) G.W. (Kg) Standard Saddle Dia. H (mm) Saddle Protr. From Plgr. K (mm) Handle Recommended Pump Model
172 68 45 36 3.1 27.5 2 No HHB-700C HHYG-1050
272 68 45 36 4.4 27.5 2 Yes HHB-700C HHYG-10100
372 68 45 36 5.7 27.5 2 Yes HHB-700C HHYG-10150
176 83 60 45 4 37.5 2 No HHB-700 HHYG-2050
276 83 60 45 5.3 37.5 2 Yes HHB-700 HHYG-20100
376 83 60 45 6.6 37.5 2 Yes HHB-700 HHYG-20150
187 103 75 65 7.9 48.5 2 No HHB-700C HHYG-3050
287 103 75 65 10.7 48.5 2 Yes HHB-700 HHYG-30100
387 103 75 65 13.5 48.5 2 Yes HHB-700A HHYG-30150
197 123 95 70 11.6 57.5 2 Yes HHB-700 HHYG-5050
297 123 95 70 14.9 57.5 2 Yes HHB-700 HHYG-50100
397 123 95 70 18 57.5 2 Yes HHB-700A HHYG-50150
232 178 140 100 30.4 83 2 Eye bolts HHB-700A HHYG-10050
332 178 140 100 36.1 83 2 Eye bolts HHB-700A HHYG-100100
432 178 140 100 42.4 83 2 Eye bolts HHB-700A HHYG-100150
232 205 165 115 43 89 4 Eye bolts HHB-630A HHYG-15050
332 205 165 115 53 89 4 Eye bolts HHB-700A HHYG-150100
432 205 165 115 63 89 4 Eye bolts HHB-700A HHYG-150150
252 228 190 135 60 109 4 Eye bolts HHB-630A HHYG-20050
352 228 190 135 71 109 4 Eye bolts HHB-700A HHYG-200100
452 228 190 135 83 109 4 Eye bolts HHB-700A HHYG-200150
298 270 215 180 105 163 1 Eye bolts HHB-630A HHYG-250150
498 270 215 180 142 163 1 Eye bolts HHB-630A HHYG-250300
798 270 215 180 196 163 1 Eye bolts HHB-630A HHYG-250500
317 295 240 200 126 177 1 Eye bolts HHB-630A HHYG-300150
517 295 240 200 165 177 1 Eye bolts HHB-630A HHYG-300300
817 295 240 200 224 177 1 Eye bolts HHB-630A HHYG-300500
365 325 270 220 195 198 2 Eye bolts HHB-630M HHYG-400150
565 325 270 220 245 198 2 Eye bolts HHB-630M HHYG-400300
865 325 270 220 318 198 2 Eye bolts HHB-630M HHYG-400500
395 373 305 250 283 228 2 Eye bolts HHB-630M HHYG-500150
595 373 305 250 349 228 2 Eye bolts HHB-630M HHYG-500300
895 373 305 250 451 228 2 Eye bolts HHB-630M HHYG-500500
421 402 330 270 354 247 2 Eye bolts HHB-630M HHYG-600150
621 402 330 270 431 247 2 Eye bolts HHB-630M HHYG-600300
921 402 330 270 546 247 2 Eye bolts HHB-630M HHYG-600500
474 472 390 320 560 293 2 Eye bolts HHB-630M HHYG-800150
674 472 390 320 665 293 2 Eye bolts HHB-630M HHYG-800300
974 472 390 320 825 293 2 Eye bolts HHB-630M HHYG-800500
527 530 430 360 799 326 2 Eye bolts HHB-630M HHYG-1000150
727 530 430 360 937 326 2 Eye bolts HHB-630M HHYG-1000300
1027 530 430 360 1145 326 2 Eye bolts HHB-630M HHYG-1000500
