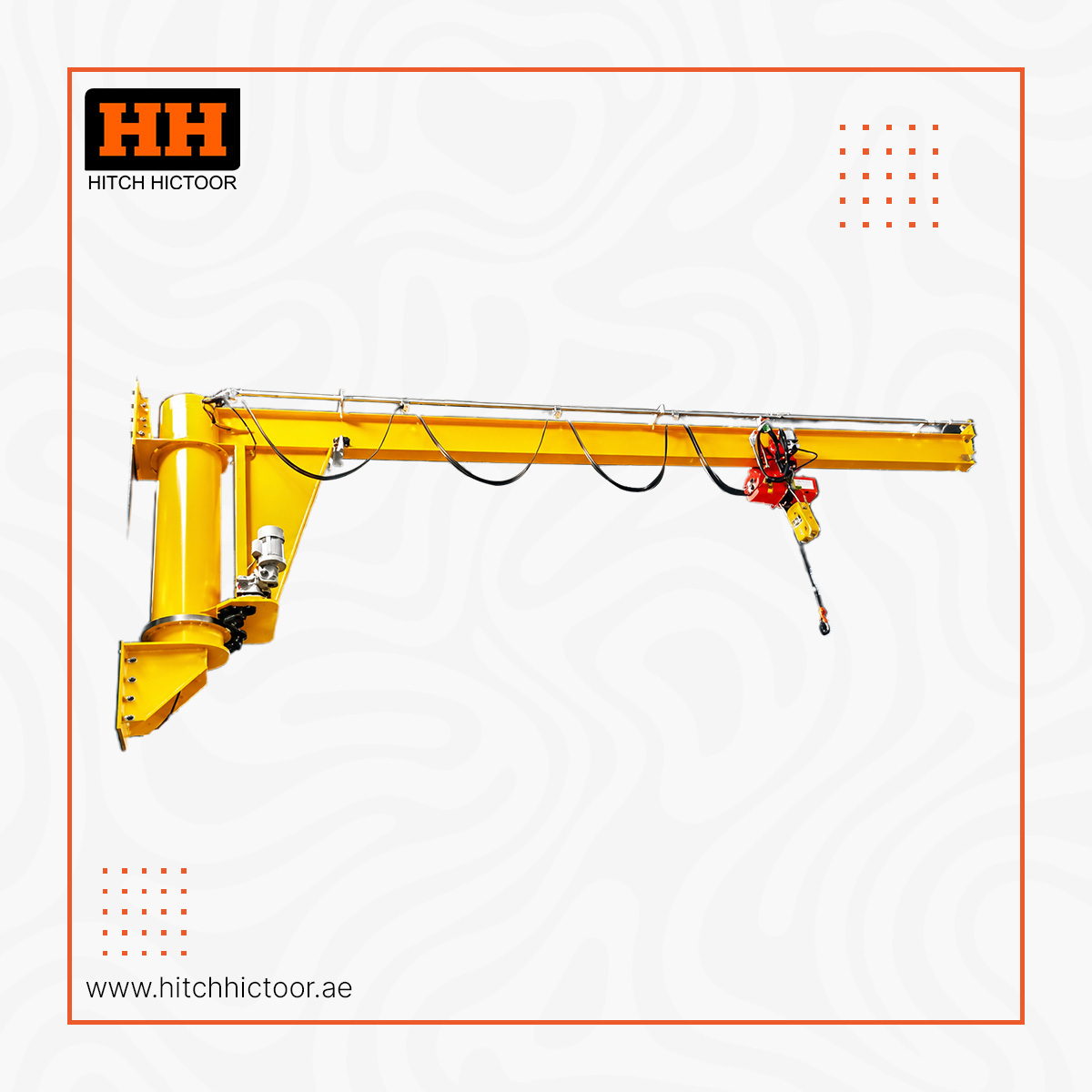

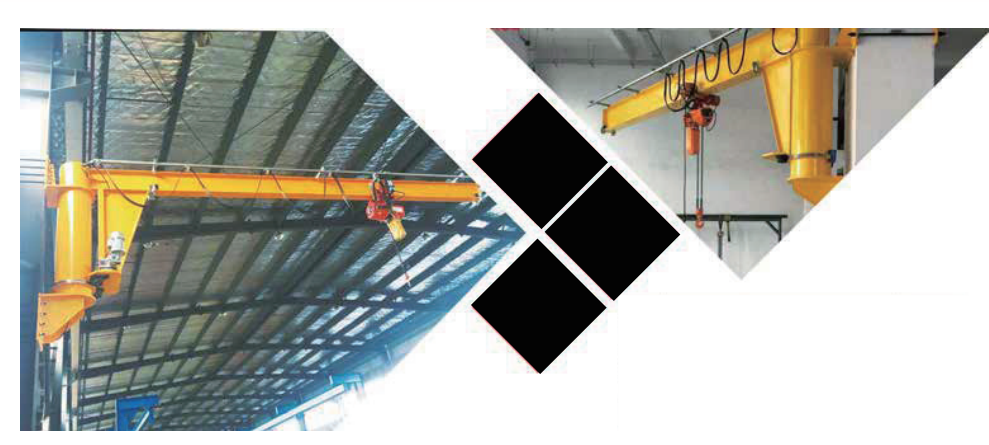

Wall-type wall jib crane adopts a low clearance jib to allow a Max lifting height. It can be used in the case of reinforced concrete walls and columns. The lifting height can be arbitrarily determined according to the height required for lifting. The jib crane can be easily fixed with bolts or hoops fix.
Description
Main Features
- The maximum lifting capacity can be 3000 kg.
- Jib length up to 10m ($\leq$1000Kg)
- Maximum rotation angle 180°
- The jib is made of H-beam as a cantilever material with a low clearance design
- Cross travel and rotation can be electrical
- Fixed on the wall or column, does not occupy any land area
| SWL (kg) | 2m | 3m | 4m | 5m | 6m | 7m | 8m | 9m | 10m | Rotation Angle |
| 125 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | $n \times 180^\circ$ |
| 250 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | $n \times 180^\circ$ |
| 500 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | $n \times 180^\circ$ |
| 1000 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | $n \times 180^\circ$ |
| 2000 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | $n \times 180^\circ$ | |
| 3000 | ✓ | ✓ | ✓ | ✓ | ✓ | $n \times 180^\circ$ |
